| Tube O.D. | A THREAD |
S1 Hex |
S2 Hex |
S3 Hex |
L | L1 | L2 | ØD DRILL |
ØP | G | L6 | L7 | Body Part Number | Assembly Part Number | Torque N-m |
Working pressure in Bar |
| 6 | M14X1.5-6g | 12.00 | 19.00 | 17.00 | 23.00 | 53.00 | 36.00 | 4.00 | 6.00 | 5.50 | 31.00 | 44.00 | XWSV06S | WSV06S | 14-16 | 630 |
| 8 | M16X1.5-6g | 14.00 | 22.00 | 19.00 | 24.00 | 54.00 | 36.00 | 5.00 | 8.00 | 6.00 | 32.00 | 44.00 | XWSV08S | WSV08S | 25-28 | 630 |
| 10 | M18X1.5-6g | 17.00 | 24.00 | 22.00 | 25.00 | 57.00 | 37.00 | 7.00 | 10.00 | 7.00 | 34.00 | 46.00 | XWSV10S | WSV10S | 27-30 | 630 |
| 12 | M20X1.5-6g | 17.00 | 27.00 | 24.00 | 29.00 | 59.00 | 38.00 | 8.00 | 12.00 | 7.00 | 38.00 | 47.00 | XWSV12S | WSV12S | 43-54 | 630 |
| 14 | M22X1.5-6g | 19.00 | 30.00 | 27.00 | 30.00 | 63.00 | 40.00 | 10.00 | 14.00 | 8.00 | 40.00 | 50.00 | XWSV14S | WSV14S | 50-62 | 630 |
| 16 | M24X1.5-6g | 24.00 | 32.00 | 30.00 | 33.00 | 64.00 | 40.00 | 12.00 | 16.00 | 10.00 | 43.00 | 50.00 | XWSV16S | WSV16S | 60-75 | 400 |
| 20 | M30X2.0-6g | 27.00 | 41.00 | 36.00 | 37.00 | 74.00 | 44.00 | 16.00 | 20.00 | 10.00 | 48.00 | 55.00 | XWSV20S | WSV20S | 90-110 | 400 |
| 25 | M36X2.0-6g | 36.00 | 46.00 | 46.00 | 42.00 | 81.00 | 47.00 | 20.00 | 25.00 | 12.00 | 54.00 | 59.00 | XWSV25S | WSV25S | 125-145 | 400 |
| 30 | M42X2.0-6g | 41.00 | 50.00 | 50.00 | 49.00 | 90.00 | 51.00 | 25.00 | 30.00 | 11.00 | 62.00 | 64.00 | XWSV30S | WSV30S | 170-190 | 250 |
| 38 | M52X2.0-6g | 50.00 | 65.00 | 60.00 | 57.00 | 96.00 | 53.00 | 32.00 | 38.00 | 14.00 | 72.00 | 68.00 | XWSV38S | WSV38S | 200-245 | 250 |
Body Part
Assembly Part

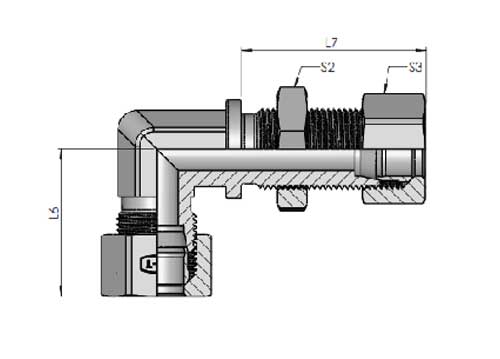

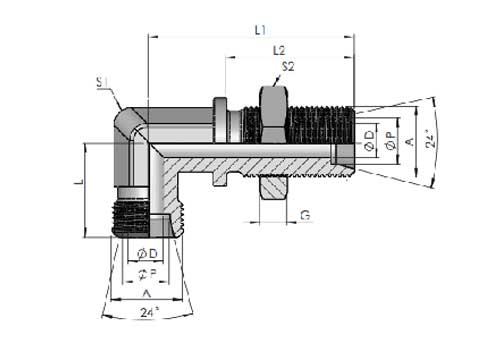

WSV-S Bulkhead Union Elbow
- Category : S-series
- TUBE O.D : 06, 08, 10, 12, 14, 16, 20, 25, 30, 38
- Part Type : Assembly, Bodyonly
| Material | Suffix surface and material | Example |
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | XWSV06L | |
| Steel ,Zinc nickel plated | ZiNi | XWSV06L-ZiNi |
| Stainless Steel-SS316 Ti | SST | XWSV06L-SST |
| Stainless Steel-SS316 | SS316 | XWSV06L-SS |
| Stainless Steel-SS304 | SS304 | XWSV06L-S |
