| Tube O.D. | A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L1 | L2 | ØD1 DRILL |
ØD2 DRILL |
ØP | L5 | Body Part Number | Assembly Part Number | Torque N-m |
Working pressure in Bar |
| 6 | M14X1.5-6g | R1/4"-19-BSPT-A | 12.00 | 17.00 | 23.00 | 26.00 | 4.00 | 4.00 | 6.00 | 31.00 | XWE06SR | WE06SR | 14-16 | 630 |
| 8 | M16X1.5-6g | R1/4"-19-BSPT-A | 14.00 | 19.00 | 24.00 | 27.00 | 5.00 | 5.00 | 8.00 | 32.00 | XWE08SR | WE08SR | 25-28 | 630 |
| 10 | M18X1.5-6g | R3/8"-19-BSPT-A | 17.00 | 22.00 | 25.00 | 28.00 | 7.00 | 7.00 | 10.00 | 34.00 | XWE10SR | WE10SR | 27-30 | 630 |
| 12 | M20X1.5-6g | R3/8"-19-BSPT-A | 17.00 | 24.00 | 29.00 | 28.00 | 8.00 | 8.00 | 12.00 | 38.00 | XWE12SR | WE12SR | 43-54 | 630 |
| 16 | M24X1.5-6g | R1/2"-14-BSPT-A | 24.00 | 30.00 | 33.00 | 32.00 | 12.00 | 12.00 | 16.00 | 43.00 | XWE16SR | WE16SR | 60-75 | 400 |
| 20 | M30X2.0-6g | G3/4"-14-BSPP-A | 27.00 | 36.00 | 37.00 | 42.00 | 16.00 | 16.00 | 20.00 | 48.00 | XWE20SR | WE20SR | 90-110 | 400 |
| 25 | M36X2.0-6g | G1"-11-BSPP-A | 36.00 | 46.00 | 42.00 | 48.00 | 20.00 | 20.00 | 25.00 | 54.00 | XWE25SR | WE25SR | 125-145 | 400 |
| 30 | M42X2.0-6g | G1-1/4"-11-BSPP-A | 41.00 | 50.00 | 49.00 | 54.00 | 25.00 | 25.00 | 30.00 | 62.00 | XWE30SR | WE30SR | 170-190 | 250 |
| 38 | M52X2.0-6g | G1-1/2"-11-BSPP-A | 50.00 | 60.00 | 57.00 | 61.00 | 32.00 | 32.00 | 38.00 | 72.00 | XWE38SR | WE38SR | 200-245 | 250 |

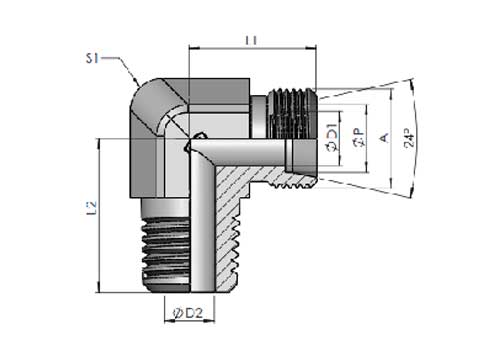

Body Part

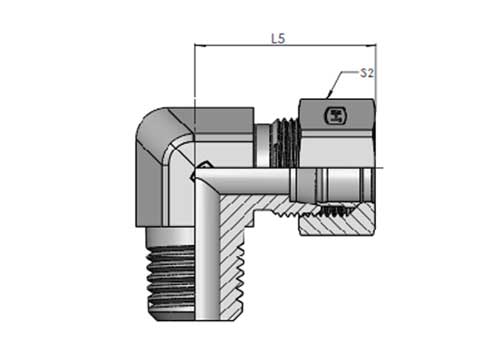

Assembly Part
WE-R-S Male Stud Elbow
- Category : S-series
- TUBE O.D : 06, 08, 10, 12, 16, 20, 25, 30, 38
- Part Type : Assembly, Bodyonly
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | XWE06LR | |
| Steel ,Zinc nickel plated | ZiNi | XWE06LR-ZiNi |
| Stainless Steel-SS316 Ti | SST | XWE06LR-SST |
| Stainless Steel-SS316 | SS316 | XWE06LR-SS |
| Stainless Steel-SS304 | SS304 | XWE06LR-S |
