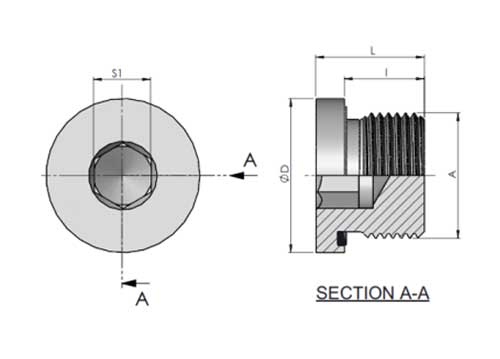

| A THREAD |
L LENGTH |
I | ØD | S1 A/F Hex |
Part Number | Torque N-m |
Working pressure in Bar |
| G1/8"-28-BSPP-A | 12.00 | 8.00 | 14.00 | 5.00 | VSTIR1-8"BSPED | 20-22 | 400 |
| G1/4"-19-BSPP-A | 17.00 | 12.00 | 19.00 | 6.00 | VSTIR1-4"BSPED | 60-66 | 400 |
| G3/8"-19-BSPP-A | 17.00 | 12.00 | 22.00 | 8.00 | VSTIR3-8"BSPED | 90-99 | 400 |
| G1/2"-14-BSPP-A | 19.00 | 14.00 | 27.00 | 10.00 | VSTIR1-2"BSPED | 130-143 | 400 |
| G3/4"-14-BSPP-A | 21.00 | 16.00 | 32.00 | 12.00 | VSTIR3-4"BSPED | 200-220 | 400 |
| G1"-11-BSPP-A | 22.50 | 16.00 | 40.00 | 17.00 | VSTIR1"BSPED | 380-418 | 400 |
| G1-1/4"-11-BSPP-A | 22.50 | 16.00 | 50.00 | 22.00 | VSTIR1-1-4"BSPED | 500-550 | 250 |
| G1-1/2"-11-BSPP-A | 22.50 | 16.00 | 55.00 | 24.00 | VSTIR1-1-2"BSPED | 600-660 | 250 |
VSTI-R Hollow Hex Plug
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | VSTIR1-8"BSPED | |
| Steel ,Zinc nickel plated | ZiNi | VSTIR1-8"BSPED-ZiNi |
| Stainless Steel-SS316 Ti | SST | VSTIR1-8"BSPED-SST |
| Stainless Steel-SS316 | SS316 | VSTIR1-8"BSPED-SS |
| Stainless Steel-SS304 | SS304 | VSTIR1-8"BSPED-S |
