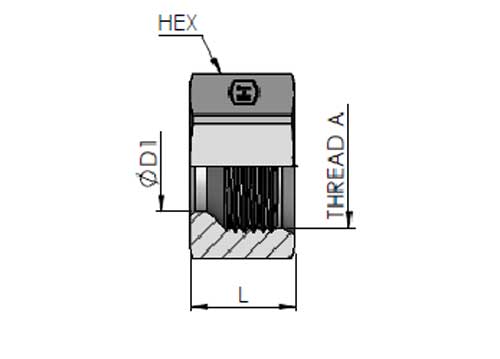

| Tube O.D. | HEX | ØD1 | L Length |
A THREAD |
Part Number | Torque N-m |
Working pressure in Bar |
| 6 | 17.00 | 6.00 | 16.50 | M14X1.5-6H | N06S | 14-16 | 630 |
| 8 | 19.00 | 8.00 | 16.50 | M16X1.5-6H | N08S | 25-28 | 630 |
| 10 | 22.00 | 10.00 | 17.50 | M18X1.5-6H | N10S | 27-30 | 630 |
| 12 | 24.00 | 12.00 | 17.50 | M20X1.5-6H | N12S | 43-54 | 630 |
| 14 | 27.00 | 14.00 | 20.50 | M22X1.5-6H | N14S | 50-62 | 630 |
| 16 | 30.00 | 16.00 | 20.50 | M24X1.5-6H | N106S | 60-75 | 400 |
| 20 | 36.00 | 20.00 | 24.00 | M30X2.0-6H | N20S | 90-110 | 400 |
| 25 | 46.00 | 25.00 | 27.00 | M36X2.0-6H | N25S | 125-145 | 400 |
| 30 | 50.00 | 30.00 | 29.00 | M42X2.0-6H | N30S | 170-190 | 250 |
| 38 | 60.00 | 38.00 | 32.50 | M52X2.0-6H | N38S | 200-245 | 250 |
N-S Nut
- Category : S-series
- TUBE O.D : 06, 08, 10, 12, 14, 16, 20, 25, 30, 38
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | N06L | |
| Steel ,Zinc nickel plated | ZiNi | N06L-ZiNi |
| Stainless Steel-SS316 Ti | SST | N06L-SST |
| Stainless Steel-SS316 | SS316 | N06L-SS |
| Stainless Steel-SS304 | SS304 | N06L-S |
