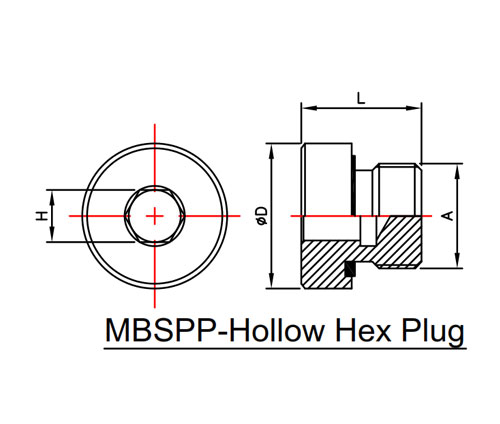

| SR. NO. |
PART NO. | ĮžD | L | A THREAD BSPP |
H |
| 01 | HT9522-H02-O | 14.0 | 12.00 | 1/8"-28BSPP | 5.00 |
| 02 | HT9522-H04-O | 19.0 | 17.00 | 1/4"-19BSPP | 6.00 |
| 03 | HT9522-H06-O | 22.0 | 17.00 | 3/8"-19BSPP | 8.00 |
| 04 | HT9522-H08-O | 27.0 | 19.00 | 1/2"-14BSPP | 10.00 |
| 05 | HT9522-H12-O | 32.0 | 21.00 | 3/4"-14BSPP | 12.00 |
| 06 | HT9522-H16-O | 40.0 | 22.50 | 1"-11BSPP | 17.00 |
| 07 | HT9522-H20-O | 50.0 | 22.50 | 1-1/4"-11BSPP | 22.00 |
| 08 | HT9522-H24-O | 55.0 | 22.50 | 1-1/2"-11BSPP | 24.00 |
ALL REQUIREMENT AS PER ISO8434
ALL DIMENSIONS ARE IN MM
