| SR. NO. |

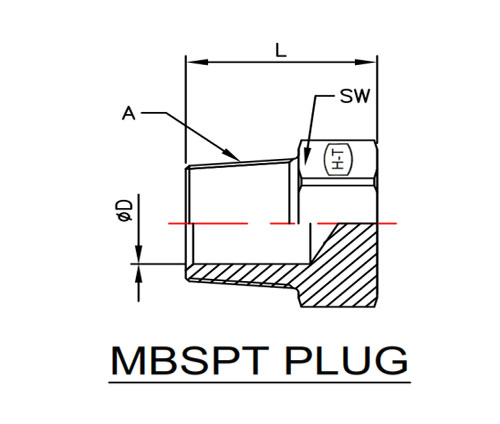

PART NO. | SW | A BSPT THREAD |
L | ĮžD |
| 01 | HT9500-P-02 | 11.0 | 1/8"-28BSPT | 15.80 | 4.90 |
| 02 | HT9500-P-04 | 14.0 | 1/4"-19BSPT | 21.10 | 7.00 |
| 03 | HT9500-P-06 | 19.0 | 3/8"-19BSPT | 21.10 | 10.30 |
| 04 | HT9500-P-08 | 22.0 | 1/2"-14BSPT | 27.40 | 13.50 |
| 05 | HT9500-P-12 | 27.0 | 3/4"-14BSPT | 29.20 | 18.00 |
| 06 | HT9500-P-16 | 36.0 | 1"-11BSPT | 34.10 | 23.80 |
| 07 | HT9500-P-20 | 41.0 | 1-1/4"-11BSPT | 36.80 | 31.70 |
| 08 | HT9500-P-24 | 50.0 | 1-1/2"-11BSPT | 39.40 | 38.00 |
ALL REQUIREMENT AS PER ISO 9974-4
ALL DIMENSIONS ARE IN MM
