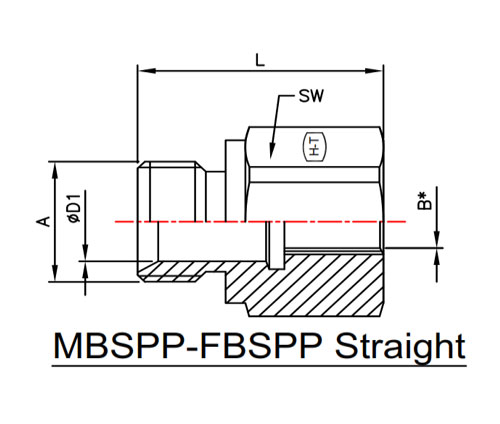

| SR. NO. |
PART NO. | SW | L | A BSPT THREAD |
ǿD1 | B BSPT THREAD (INT) |
| 01 | HT9023-08-04 | 27.0 | 38.00 | 1/2"-14BSPT | 11.10 | 1/4"-19BSPP |
| 02 | HT9023-12-04 | 32.0 | 40.00 | 3/4"-14BSPT | 16.70 | 1/4"-19BSPP |
| 03 | HT9023-12-06 | 32.0 | 42.00 | 3/4"-14BSPT | 16.70 | 3/8"-19BSPP |
| 04 | HT9023-16-04 | 41.0 | 43.00 | 1"-14BSPT | 22.20 | 1/4"-19BSPP |
| 05 | HT9023-16-06 | 41.0 | 45.00 | 1"-14BSPT | 22.20 | 3/8"-19BSPP |
| 06 | HT9023-16-08 | 41.0 | 51.00 | 1"-14BSPT | 22.20 | 1/2"-14BSPP |
* THIS THRAEDS ARE CAPABLE FOR BSPP MALE & BSPT MALE ALSO
ALL REQUIREMENT AS PER ISO 8434, ISO 1179-1, BS 5200, DIN 3852
ALL DIMENSIONS ARE IN MM
