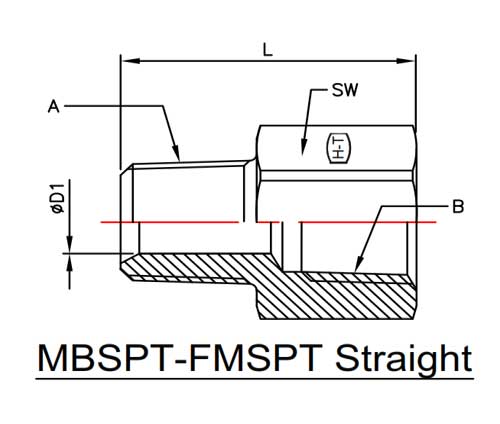

| SR. NO. |
PART NO. | SW | L | A BSPT THREAD |
ǿD1 | B BSPT THREAD (INT) |
| 01 | HT9001-06-04 | 19.0 | 25.80 | 3/8"-19BSPT | 6.00 | 1/4"-19BSPT |
| 02 | HT9001-08-04 | 22.0 | 28.00 | 1/2"-14BSPT | 6.00 | 1/4"-19BSPT |
| 03 | HT9001-08-06 | 22.0 | 28.00 | 1/2"-14BSPT | 9.00 | 3/8"-19BSPT |
| 04 | HT9001-12-06 | 27.0 | 31.00 | 3/4"-14BSPT | 9.00 | 3/8"-19BSPT |
| 05 | HT9001-12-08 | 30.0 | 30.13 | 3/4"-14BSPT | 13.00 | 1/2"-14BSPT |
| 06 | HT9001-16-08 | 36.0 | 35.50 | 1"-14BSPT | 13.00 | 1/2"-14BSPT |
| 07 | HT9001-16-12 | 36.0 | 34.50 | 1"-14BSPT | 18.00 | 3/4"-14BSPT |
ALL REQUIREMENT AS PER SAE DIN 3900
ALL DIMENSIONS ARE IN MM
