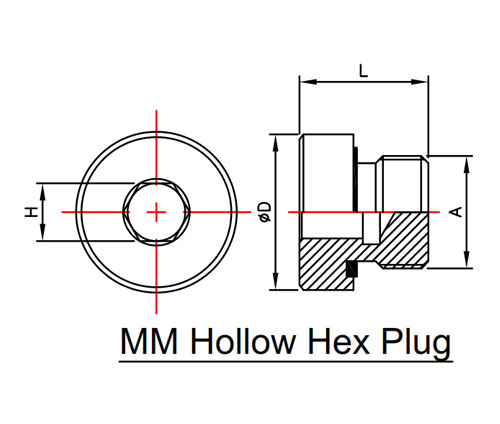

| SR. NO. |
PART NO. | ĮžD | A METRIC THREAD |
L | H |
| 01 | HT8555-H10-O | 14.0 | M10X1.0 6g | 12.30 | 5.00 |
| 02 | HT8555-H12-O | 17.0 | M12X1.5 6g | 17.30 | 6.00 |
| 03 | HT8555-H14-O | 19.0 | M14X1.5 6g | 17.30 | 6.00 |
| 04 | HT8555-H16-O | 22.0 | M16X1.5 6g | 17.30 | 8.00 |
| 05 | HT8555-H18-O | 24.0 | M18X1.5 6g | 17.30 | 8.00 |
| 06 | HT8555-H20-O | 26.0 | M20X1.5 6g | 19.30 | 10.00 |
| 07 | HT8555-H22-O | 27.0 | M22X1.5 6g | 19.30 | 10.00 |
| 08 | HT8555-H26-O | 32.0 | M26X1.5 6g | 21.30 | 12.00 |
| 09 | HT8555-H27-O | 32.0 | M27X2.0 6g | 21.30 | 12.00 |
| 10 | HT8555-H33-O | 40.0 | M33X2.0 6g | 22.80 | 17.00 |
| 11 | HT8555-H42-O | 50.0 | M42X2.0 6g | 22.80 | 22.00 |
| 12 | HT8555-H48-O | 55.0 | M48X2.0 6g | 22.80 | 24.00 |
ALL REQUIREMENT AS PER ISO 9974-4
ALL DIMENSIONS ARE IN MM
