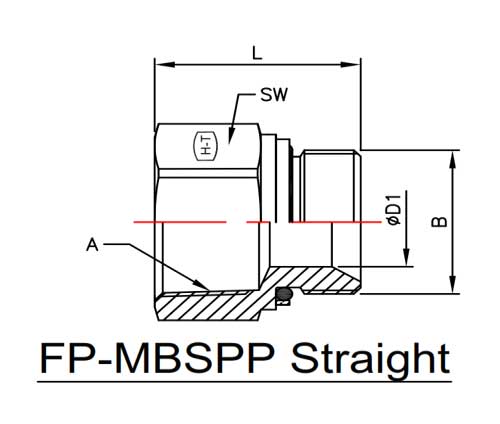

| SR. NO. |
PART NO. | SW | L | A NPTF THREAD (INT) |
B BSPP THREAD |
ĮžD1 |
| 01 | HT7042-02-02 | 17.0 | 28.00 | 1/8"-27NPTF | 1/8"-28BSPP | 3.50 |
| 02 | HT7042-04-04 | 19.0 | 32.50 | 1/4"-18NPTF | 1/4"-19BSPP | 6.00 |
| 03 | HT7042-04-06 | 22.0 | 21.50 | 1/4"-18NPTF | 3/8"-19BSPP | 10.99 |
| 04 | HT7042-04-08 | 27.0 | 28.00 | 1/4"-18NPTF | 1/2"-14BSPP | 10.99 |
| 05 | HT7042-04-12 | 32.0 | 28.00 | 1/4"-18NPTF | 3/4"-14BSPP | 10.99 |
| 06 | HT7042-04-16 | 41.0 | 29.00 | 1/4"-18NPTF | 1"-11BSPP | 10.99 |
| 07 | HT7042-06-04 | 22.0 | 32.90 | 3/8"-18NPTF | 1/4"-19BSPP | 6.00 |
| 08 | HT7042-06-06 | 22.0 | 33.90 | 3/8"-18NPTF | 3/8"-19BSPP | 7.90 |
| 09 | HT7042-06-08 | 27.0 | 42.40 | 3/8"-18NPTF | 1/2"-14BSPP | 11.10 |
| 10 | HT7042-06-10 | 30.0 | 26.00 | 3/8"-18NPTF | 5/8"-14BSPP | 14.41 |
| 11 | HT7042-06-12 | 32.0 | 28.00 | 3/8"-18NPTF | 3/4"-14BSPP | 14.41 |
| 12 | HT7042-06-16 | 41.0 | 29.00 | 3/8"-18NPTF | 1"-11BSPP | 14.41 |
| 13 | HT7042-08-04 | 30.0 | 39.00 | 1/2"-14NPTF | 1/4"-19BSPP | 6.00 |
| 14 | HT7042-08-06 | 30.0 | 40.00 | 1/2"-14NPTF | 3/8"-19BSPP | 7.90 |
| 15 | HT7042-08-08 | 30.0 | 44.50 | 1/2"-14NPTF | 1/2"-14BSPP | 11.10 |
| 16 | HT7042-08-12 | 32.0 | 41.00 | 1/2"-14NPTF | 3/4"-14BSPP | 16.70 |
| 17 | HT7042-08-16 | 41.0 | 29.00 | 1/2"-14NPTF | 1"-11BSPP | 17.81 |
| 18 | HT7042-12-12 | 32.0 | 48.50 | 3/4"-14NPTF | 3/4"-14BSPP | 16.70 |
| 19 | HT7042-12-16 | 41.0 | 50.50 | 3/4"-14NPTF | 1"-11BSPP | 22.20 |
| 20 | HT7042-16-16 | 41.0 | 54.80 | 1"-11-1/2NPTF | 1"-11BSPP | 22.20 |
ALL REQUIREMENT AS PER SAE J514/ BS:5200
ALL DIMENSIONS ARE IN MM
