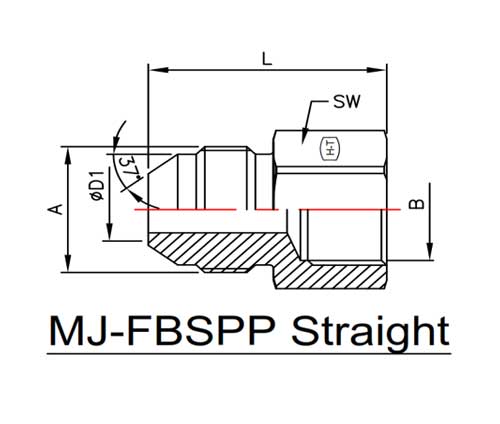

| SR. NO. |
PART NO. | SW | L | A JIC THREAD |
ĮžD1 | B BSPP THREAD (INT) |
| 01 | HT7003-04-04 | 19.0 | 33.00 | 7/16"-20UNF | 4.40 | 1/4"-19BSPP |
| 02 | HT7003-06-04 | 19.0 | 33.10 | 9/16"-18UNF | 7.50 | 1/4"-19BSPP |
| 03 | HT7003-06-06 | 22.0 | 35.10 | 9/16"-18UNF | 7.50 | 3/8"-19BSPP |
| 04 | HT7003-08-06 | 22.0 | 37.70 | 3/4"-16UNF | 9.90 | 3/8"-19BSPP |
| 05 | HT7003-08-08 | 27.0 | 39.70 | 3/4"-16UNF | 9.90 | 1/2"-14BSPP |
| 06 | HT7003-12-12 | 32.0 | 49.90 | 1-1/16"-12UN | 15.50 | 3/4"-14BSPP |
| 07 | HT7003-16-16 | 41.0 | 54.10 | 1-5/16"-12UN | 21.50 | 1"11BSPP |
ALL REQUIREMENT AS PER SAE J514 & ISO 6149-3
ALL DIMENSIONS ARE IN MM
