| SR. NO. |

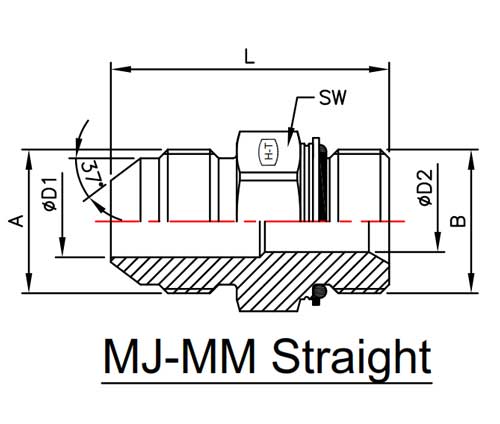

PART NO. | SW | L | A JIC THREAD |
ǾD1 | B METRIC THREAD |
ǾD2 |
| 01 | HT7001-04-10 | 14.0 | 30.00 | 7/16"-20UNF | 4.40 | M10X1.0 6g | 4.40 |
| 02 | HT7001-04-12 | 17.0 | 33.00 | 7/16"-20UNF | 4.40 | M12X1.5 6g | 6.00 |
| 03 | HT7001-04-14 | 19.0 | 34.00 | 7/16"-20UNF | 4.40 | M14X1.5 6g | 7.50 |
| 04 | HT7001-06-12 | 19.0 | 33.10 | 9/16"-18UNF | 7.50 | M12X1.5 6g | 6.00 |
| 05 | HT7001-06-14 | 19.0 | 34.00 | 9/16"-18UNF | 7.50 | M14X1.5 6g | 7.50 |
| 06 | HT7001-06-16 | 22.0 | 36.00 | 9/16"-18UNF | 7.50 | M16X1.5 6g | 9.00 |
| 07 | HT7001-06-18 | 24.0 | 37.00 | 9/16"-18UNF | 7.50 | M18X1.5 6g | 11.00 |
| 08 | HT7001-08-14 | 22.0 | 37.00 | 3/4"-16UNF | 9.90 | M14X1.5 6g | 7.50 |
| 09 | HT7001-08-16 | 22.0 | 38.00 | 3/4"-16UNF | 9.90 | M16X1.5 6g | 9.00 |
| 10 | HT7001-08-18 | 24.0 | 39.00 | 3/4"-16UNF | 9.90 | M18X1.5 6g | 11.00 |
| 11 | HT7001-08-22 | 27.0 | 42.00 | 3/4"-16UNF | 9.90 | M22X1.5 6g | 14.00 |
| 12 | HT7001-10-18 | 24.0 | 43.00 | 7/8"-14UNF | 12.30 | M18X1.5 6g | 11.00 |
| 13 | HT7001-10-20 | 27.0 | 44.00 | 7/8"-14UNF | 12.30 | M20X1.5 6g | 12.50 |
| 14 | HT7001-10-22 | 27.0 | 44.00 | 7/8"-14UNF | 12.30 | M22X1.5 6g | 14.00 |
| 15 | HT7001-12-22 | 27.0 | 48.00 | 1-1/16"-12UN | 15.50 | M22X1.5 6g | 14.00 |
| 16 | HT7001-12-26 | 32.0 | 51.00 | 1-1/16"-12UN | 15.50 | M26X1.5 6g | 16.00 |
| 17 | HT7001-12-27 | 32.0 | 51.00 | 1-1/16"-12UN | 15.50 | M27X2.0 6g | 18.00 |
| 18 | HT7001-16-27 | 41.0 | 51.00 | 1-5/16"-12UN | 21.50 | M27X2.0 6g | 18.00 |
| 19 | HT7001-16-33 | 41.0 | 53.00 | 1-5/16"-12UN | 21.50 | M33X2.0 6g | 23.00 |
ALL REQUIREMENT AS PER SAE J514 & ISO 6149-3
ALL DIMENSIONS ARE IN MM
