| Tube O.D. | A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L | ØD DRILL |
ØP | L3 | L4 | Body Part Number | Assembly Part Number | Torque N-m | Working pressure in Bar |
| 6 | M12X1.5-6g | G1/8"-28-BSPP-A | 14.00 | 14.00 | 23.50 | 4.00 | 6.00 | 8.00 | 23.00 | XGE06LRED | GE06LRED | 13-15 | 250 |
| 8 | M14X1.5-6g | G1/4"-19-BSPP-A | 19.00 | 17.00 | 29.00 | 6.00 | 8.00 | 12.00 | 25.00 | XGE08LRED | GE08LRED | 15-18 | 250 |
| 10 | M16X1.5-6g | G1/4"-19-BSPP-A | 19.00 | 19.00 | 30.00 | 6.00 | 10.00 | 12.00 | 26.00 | XGE10LRED | GE10LRED | 25-28 | 250 |
| 12 | M18X1.5-6g | G3/8"-19-BSPP-A | 22.00 | 22.00 | 31.50 | 9.00 | 12.00 | 12.00 | 27.00 | XGE12LRED | GE12LRED | 27-30 | 250 |
| 15 | M22X1.5-6g | G1/2"-14-BSPP-A | 27.00 | 27.00 | 35.00 | 11.00 | 15.00 | 14.00 | 29.00 | XGE15LRED | GE15LRED | 50-60 | 250 |
| 18 | M26X1.5-6g | G1/2"-14-BSPP-A | 27.00 | 32.00 | 36.00 | 14.00 | 18.00 | 14.00 | 31.00 | XGE18LRED | GE18LRED | 60-75 | 160 |
| 22 | M30X2.0-6g | G3/4"-14-BSPP-A | 32.00 | 36.00 | 40.00 | 18.00 | 22.00 | 16.00 | 33.00 | XGE22LRED | GE22LRED | 85-105 | 160 |
| 28 | M36X2.0-6g | G1"-11-BSPP-A | 41.00 | 41.00 | 43.00 | 23.00 | 28.00 | 18.00 | 34.00 | XGE28LRED | GE28LRED | 120-140 | 100 |
| 35 | M45X2.0-6g | G1-1/4"-11-BSPP-A | 50.00 | 50.00 | 48.00 | 30.00 | 35.30 | 20.00 | 39.00 | XGE35LRED | GE35LRED | 170-190 | 100 |
| 42 | M52X2.0-6g | G1-1/2"-11-BSPP-A | 55.00 | 60.00 | 52.00 | 36.00 | 42.30 | 22.00 | 42.00 | XGE42LRED | GE42LRED | 190-230 | 100 |
Body Part
Assembly Part

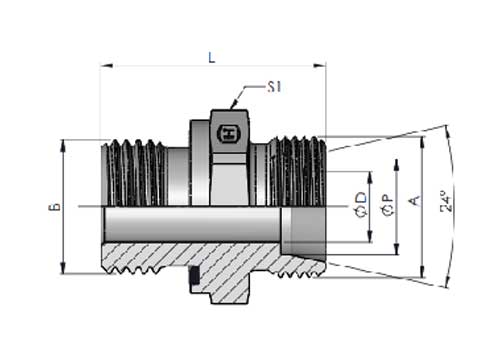

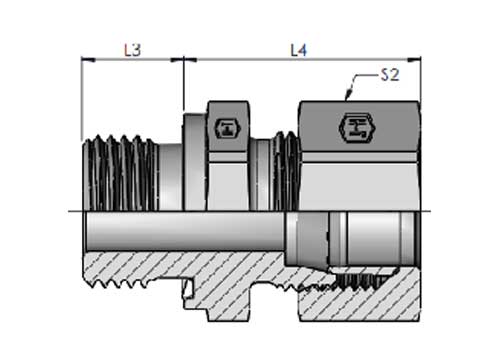

GE-R-ED-L Parallel Male Stud
- Category : L-series
- TUBE O.D : 06, 08, 10, 12, 15, 18, 22, 28, 35, 42
- Part Type : Assembly, Bodyonly
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | XGE06LRED | |
| Steel ,Zinc nickel plated | ZiNi | XGE06LRED-ZiNi |
| Stainless Steel-SS316 Ti | SST | XGE06LRED-SST |
| Stainless Steel-SS316 | SS316 | XGE06LRED-SS |
| Stainless Steel-SS304 | SS304 | XGE06LRED-S |
