| Tube O.D. | A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L | ØD DRILL |
ØP | L3 | L4 | Body Part Number | Assembly Part Number | Torque N-m |
Working pressure in Bar |
| 6 | M14X1.5-6g | M12X1.5-6g | 17.00 | 17.00 | 32.00 | 4.00 | 6.00 | 14.00 | 28.00 | XGE06SMED | GE06SMED | 14-16 | 630 |
| 8 | M16X1.5-6g | M14X1.5-6g | 19.00 | 19.00 | 34.00 | 5.00 | 8.00 | 12.00 | 30.00 | XGE08SMED | GE08SMED | 25-28 | 630 |
| 10 | M18X1.5-6g | M16X1.5-6g | 22.00 | 22.00 | 34.50 | 7.00 | 10.00 | 12.00 | 31.00 | XGE10SMED | GE10SMED | 27-30 | 630 |
| 12 | M20X1.5-6g | M18X1.5-6g | 24.00 | 24.00 | 36.50 | 8.00 | 12.00 | 12.00 | 33.00 | XGE12SMED | GE12SMED | 43-54 | 630 |
| 14 | M22X1.5-6g | M20X1.5-6g | 27.00 | 27.00 | 41.00 | 10.00 | 14.00 | 14.00 | 37.00 | XGE14SMED | GE14SMED | 50-62 | 630 |
| 16 | M24X1.5-6g | M22X1.5-6g | 27.00 | 30.00 | 41.00 | 12.00 | 16.00 | 14.00 | 37.00 | XGE16SMED | GE16SMED | 60-75 | 400 |
| 20 | M30X2.0-6g | M27X2.0-6g | 32.00 | 36.00 | 47.00 | 16.00 | 20.00 | 16.00 | 42.00 | XGE20SMED | GE20SMED | 90-110 | 400 |
| 25 | M36X2.0-6g | M33X2.0-6g | 41.00 | 46.00 | 53.00 | 20.00 | 25.00 | 18.00 | 47.00 | XGE25SMED | GE25SMED | 125-145 | 400 |
| 30 | M42X2.0-6g | M42X2.0-6g | 50.00 | 50.00 | 57.00 | 25.00 | 30.00 | 20.00 | 50.00 | XGE30SMED | GE30SMED | 170-190 | 250 |
| 38 | M52X2.0-6g | M48X2.0-6g | 55.00 | 60.00 | 64.00 | 32.00 | 38.00 | 22.00 | 57.00 | XGE38SMED | GE38SMED | 200-245 | 250 |

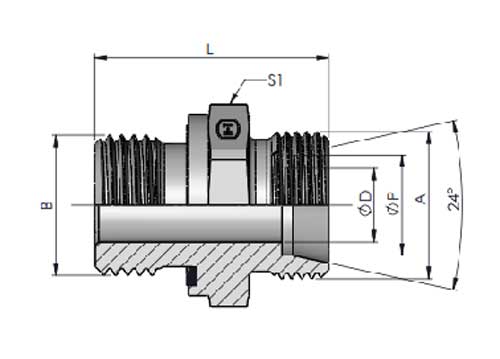

Body Part

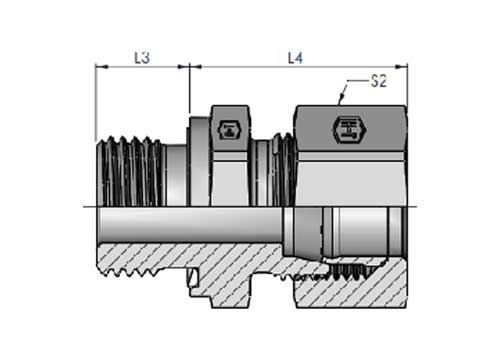

Assembly Part
GE-M-ED-S Parallel Male Stud
- Category : S-series
- TUBE O.D : 06, 08, 10, 12, 14, 16, 20, 25, 30, 38
- Part Type : Assembly, Bodyonly
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | XGE06LMED | |
| Steel ,Zinc nickel plated | ZiNi | XGE06LMED-ZiNi |
| Stainless Steel-SS316 Ti | SST | XGE06LMED-SST |
| Stainless Steel-SS316 | SS316 | XGE06LMED-SS |
| Stainless Steel-SS304 | SS304 | XGE06LMED-S |
