| Tube O.D. | A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L1 L2 |
L3 | ØD DRILL | ØD1 DRILL |
ØP | L4 | Body Part Number | Assembly Part Number | Torque N-m |
Working pressure in Bar |
| 6 | M12X1.5-6g | M12X1.5-6H | 12.00 | 14.00 | 19.00 | 26.00 | 4.00 | 3.00 | 6.00 | 27.00 | XEVT06L | EVT06L | 13-15 | 250 |
| 8 | M14X1.5-6g | M14X1.5-6H | 14.00 | 17.00 | 21.00 | 27.00 | 6.00 | 4.00 | 8.00 | 29.00 | XEVT08L | EVT08L | 15-18 | 250 |
| 10 | M16X1.5-6g | M16X1.5-6H | 14.00 | 19.00 | 22.00 | 28.50 | 8.00 | 6.00 | 10.00 | 30.00 | XEVT10L | EVT10L | 25-28 | 250 |
| 12 | M18X1.5-6g | M18X1.5-6H | 17.00 | 22.00 | 24.00 | 29.00 | 10.00 | 7.00 | 12.00 | 32.00 | XEVT12L | EVT12L | 27-30 | 250 |
| 15 | M22X1.5-6g | M22X1.5-6H | 19.00 | 27.00 | 28.00 | 32.00 | 12.00 | 10.00 | 15.00 | 36.00 | XEVT15L | EVT15L | 50-60 | 250 |
| 18 | M26X1.5-6g | M26X1.5-6H | 24.00 | 32.00 | 31.00 | 35.00 | 15.00 | 13.00 | 18.00 | 40.00 | XEVT18L | EVT18L | 60-75 | 160 |
| 22 | M30X2.0-6g | M30X2.0-6H | 27.00 | 36.00 | 35.00 | 38.00 | 19.00 | 16.00 | 22.00 | 44.00 | XEVT22L | EVT22L | 85-105 | 160 |
| 28 | M36X2.0-6g | M36X2.0-6H | 36.00 | 41.00 | 38.00 | 41.50 | 24.00 | 22.00 | 28.00 | 47.00 | XEVT28L | EVT28L | 120-140 | 100 |
| 35 | M45X2.0-6g | M45X2.0-6H | 41.00 | 50.00 | 45.00 | 51.00 | 30.00 | 28.00 | 35.00 | 56.00 | XEVT35L | EVT35L | 170-190 | 100 |
| 42 | M52X2.0-6g | M52X2.0-6H | 50.00 | 60.00 | 51.00 | 56.00 | 36.00 | 34.00 | 42.00 | 63.00 | XEVT42L | EVT42L | 190-230 | 100 |

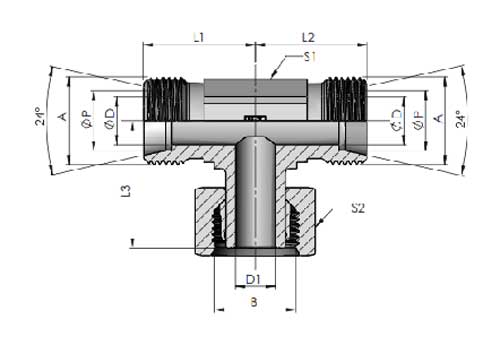

Body Part

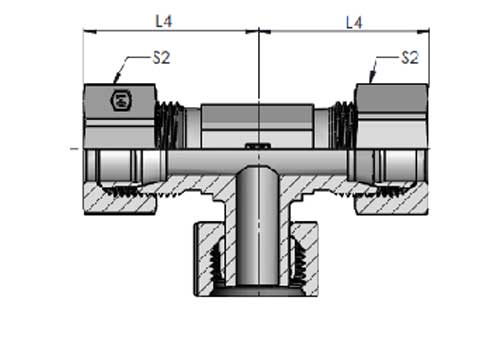

Assembly Part
EVT-L Swivel Branch Tee
- Category : L-series
- TUBE O.D : 06, 08, 10, 12, 15, 18, 22, 28, 35, 42
- Part Type : Assembly, Bodyonly
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | XEVT06L | |
| Steel ,Zinc nickel plated | ZiNi | XEVT06L-ZiNi |
| Stainless Steel-SS316 Ti | SST | XEVT06L-SST |
| Stainless Steel-SS316 | SS316 | XEVT06L-SS |
| Stainless Steel-SS304 | SS304 | XEVT06L-S |
