| Tube O.D. | A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L | ØD DRILL |
ØD1 | Body Part Number | Assembly Part Number | Torque N-m | Working pressure in Bar |
| 6 | G1/4"-19-BSPP-A | M14X1.5-6H | 19.00 | 17.00 | 39.00 | 3.00 | 6.00 | XSP06SR | EVGE06SR | 14-16 | 630 |
| 8 | G1/4"-19-BSPP-A | M16X1.5-6H | 19.00 | 19.00 | 41.50 | 4.00 | 8.00 | XSP08SR | EVGE08SR | 25-28 | 630 |
| 10 | G3/8"-19-BSPP-A | M18X1.5-6H | 22.00 | 22.00 | 44.00 | 6.00 | 10.00 | XSP10SR | EVGE10SR | 27-30 | 630 |
| 12 | G3/8"-19-BSPP-A | M20X1.5-6H | 22.00 | 24.00 | 46.00 | 7.00 | 12.00 | XSP12SR | EVGE12SR | 43-54 | 630 |
| 14 | G1/2"-14-BSPP-A | M22X1.5-6H | 27.00 | 27.00 | 50.50 | 9.00 | 14.00 | XSP14SR | EVGE14SR | 50-62 | 630 |
| 16 | G1/2"-14-BSPP-A | M24X1.5-6H | 27.00 | 30.00 | 51.00 | 11.00 | 16.00 | XSP16SR | EVGE16SR | 60-75 | 400 |
| 20 | G3/4"-14-BSPP-A | M30X2.0-6H | 32.00 | 36.00 | 59.00 | 15.00 | 20.00 | XSP20SR | EVGE20SR | 90-110 | 400 |
| 25 | G1"-11-BSPP-A | M36X2.0-6H | 41.00 | 46.00 | 66.00 | 17.00 | 25.00 | XSP25SR | EVGE25SR | 125-145 | 400 |
| 30 | G1-1/4"-11-BSPP-A | M42X2.0-6H | 50.00 | 50.00 | 71.00 | 22.00 | 30.00 | XSP30SR | EVGE30SR | 170-190 | 250 |
| 38 | G1-1/2"-11-BSPP-A | M52X2.0-6H | 55.00 | 60.00 | 82.00 | 28.00 | 38.00 | XSP38SR | EVGE38SR | 200-245 | 250 |
Body Part
Assembly Part

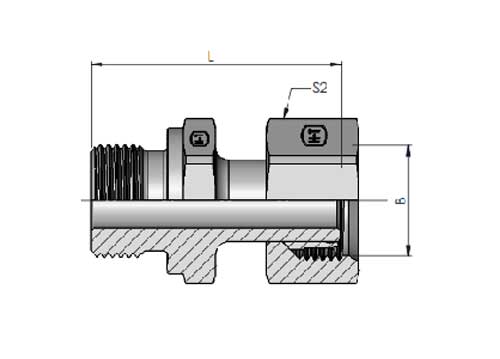

EVGE-R-S Stand Pipe Adaptor With Nut And Ferrule
- Category : S-series
- TUBE O.D : 06, 08, 10, 12, 14, 16, 20, 25, 30, 38
- Part Type : Assembly, Bodyonly
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | XSP06LR | |
| Steel ,Zinc nickel plated | ZiNi | XSP06LR-ZiNi |
| Stainless Steel-SS316 Ti | SST | XSP06LR-SST |
| Stainless Steel-SS316 | SS316 | XSP06LR-SS |
| Stainless Steel-SS304 | SS304 | XSP06LR-S |
