| Tube O.D. | A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L | ØD DRILL |
Body Part Number | Assembly Part Number | Torque N-m |
Working pressure in Bar |
| 8 | M14X1.5-6H | G1/4"-19BSPP-A | 19.00 | 17.00 | 39.50 | 4.00 | XEGE08LRED | EGE08LRED | 15-18 | 250 |
| 10 | M16X1.5-6H | G1/4"-19BSPP-A | 19.00 | 19.00 | 38.00 | 6.00 | XEGE10LRED | EGE10LRED | 25-28 | 250 |
| 12 | M18X1.5-6H | G3/8"-19BSPP-A | 22.00 | 22.00 | 44.50 | 8.00 | XEGE12LRED | EGE12LRED | 27-30 | 250 |
| 15 | M22X1.5-6H | G1/2"-14BSPP-A | 27.00 | 27.00 | 44.50 | 10.00 | XEGE15LRED | EGE15LRED | 50-60 | 250 |
| 18 | M26X1.5-6H | G1/2"-14BSPP-A | 27.00 | 32.00 | 43.50 | 13.00 | XEGE18LRED | EGE18LRED | 60-75 | 160 |
| 22 | M30X2.0-6H | G3/4"-14BSPP-A | 32.00 | 36.00 | 46.50 | 17.00 | XEGE22LRED | EGE22LRED | 85-105 | 160 |
| 28 | M36X2.0-6H | G1"-11BSPP-A | 41.00 | 41.00 | 51.00 | 22.00 | XEGE28LRED | EGE28LRED | 120-140 | 100 |
| 35 | M45X2.0-6H | G1-1/4"-11BSPP-A | 50.00 | 50.00 | 59.00 | 28.00 | XEGE35LRED | EGE35LRED | 170-190 | 100 |
| 42 | M52X2.0-6H | G1-1/2"-11BSPP-A | 55.00 | 60.00 | 64.50 | 34.00 | XEGE42LRED | EGE42LRED | 190-230 | 100 |

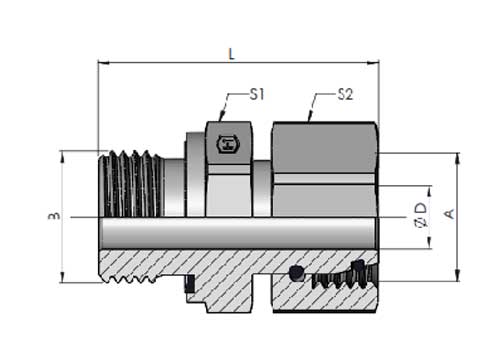

EGE-R-L Swivel Connector
- Category : L-series
- TUBE O.D : 08, 10, 12, 15, 18, 22, 28, 35, 42
- Part Type : Assembly, Bodyonly
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | XEGE08LMED | |
| Steel ,Zinc nickel plated | ZiNi | XEGE08LMED-ZiNi |
| Stainless Steel-SS316 Ti | SST | XEGE08LMED-SST |
| Stainless Steel-SS316 | SS316 | XEGE08LMED-SS |
| Stainless Steel-SS304 | SS304 | XEGE08LMED-S |
