| Tube O.D. | A THREAD |
B THREAD |
M LENGTH |
N LENGTH |
CC LENGTH |
L3 LENGTH |
D DRILL |
D3 DRILL |
JJ Hex |
C Hex |
Part Number | Torque N-m |
Working pressure in Bar |
| 1/4" | 9/16"-18 | M12X1.5-6g | 16.00 | 30.00 | 9.80 | 21.00 | 4.40 | 4.00 | 14.00 | 17.00 | HTFS7300-04-12-NWO | 35-38.5 | 413 |
| 1/4" | 9/16"-18 | M14X1.5-6g | 17.50 | 31.50 | 9.80 | 21.00 | 4.40 | 6.00 | 17.00 | 19.00 | HTFS7300-04-14-NWO | 45-49.50 | 413 |
| 3/8" | 11/16"-18 | M16X1.5-6g | 19.00 | 33.50 | 11.20 | 23.00 | 6.70 | 7.00 | 17.00 | 22.00 | HTFS7300-06-16-NWO | 55-60.50 | 413 |
| 1/2" | 13/16"-16 | M14X1.5-6g | 20.50 | 32.00 | 12.80 | 21.00 | 9.60 | 6.00 | 19.00 | 19.00 | HTFS7300-08-14-NWO | 45-49.50 | 413 |
| 1/2" | 13/16"-16 | M18X1.5-6g | 20.50 | 37.00 | 12.80 | 26.00 | 9.60 | 9.00 | 19.00 | 24.00 | HTFS7300-08-18-NWO | 70-77 | 413 |
| 5/8" | 1"-14UNS | M22X1.5-6g | 23.50 | 44.00 | 17.50 | 27.50 | 12.30 | 12.00 | 24.00 | 27.00 | HTFS7300-10-22-NWO | 100-110 | 413 |
| 3/4" | 1-3/16"-12 | M27X2.0-6g | 26.00 | 50.50 | 17.50 | 33.50 | 15.50 | 15.00 | 27.00 | 32.00 | HTFS7300-12-27-NWO | 170-187 | 413 |
| 1" | 1-7/16"-12 | M33X2.0-6g | 30.00 | 52.50 | 17.50 | 33.50 | 20.60 | 20.00 | 36.00 | 41.00 | HTFS7300-16-33-NWO | 310-341 | 345 |
| 1-1/4" | 1-11/16"-12 | M42X2.0-6g | 32.00 | 54.00 | 17.50 | 34.50 | 26.00 | 26.00 | 41.00 | 50.00 | HTFS7300-20-42-NWO | 330-363 | 275 |
| 1-1/2" | 2"-12 | M48X2.0-6g | 37.00 | 56.50 | 17.50 | 38.00 | 32.00 | 32.00 | 50.00 | 55.00 | HTFS7300-24-48-NWO | 420-462 | 207 |
Body
Assembly

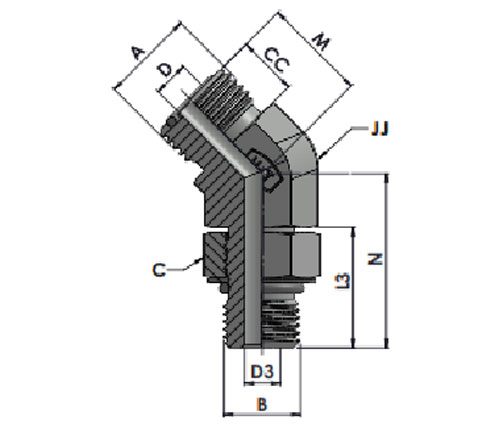

HTFS7300-NWO MFS-MMAORB 45° Elbow
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS7300-04-12-NWO | |
| Steel ,Zinc nickel plated | ZiNi | HTFS7300-04-12-NWO-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS7300-04-12-NWO-SST |
| Stainless Steel-SS316 | SS316 | HTFS7300-04-12-NWO-SS |
| Stainless Steel-SS304 | SS304 | HTFS7300-04-12-NWO-S |
