| Tube O.D. | A THREAD |
B THREAD |
M LENGTH |
N LENGTH |
CC LENGTH |
L3 LENGTH |
D DRILL |
D3 DRILL |
JJ Hex |
C Hex |
Part Number | Torque N-m |
Working pressure in Bar |
| 1/4" | 9/16"-18 | 1/4"-19 | 23.50 | 36.00 | 9.80 | 20.00 | 4.40 | 7.50 | 19.00 | 19.00 | HTFS7202-04-04-NWO | 50-55 | 413 |
| 3/8" | 11/16"-18 | 3/8"-19 | 26.50 | 38.00 | 11.20 | 20.00 | 6.70 | 9.90 | 19.00 | 22.00 | HTFS7202-06-06-NWO | 80-88 | 413 |
| 1/2" | 13/16"-16 | 1/2"-14 | 30.80 | 48.50 | 12.80 | 26.10 | 9.60 | 12.30 | 27.00 | 27.00 | HTFS7202-08-08-NWO | 105-115.5 | 413 |
| 3/4" | 1-3/16"-12 | 3/4"-14 | 37.30 | 51.50 | 17.00 | 26.10 | 15.50 | 15.50 | 30.00 | 36.00 | HTFS7202-12-12-NWO | 220-242 | 413 |
| 1" | 1-7/16"-12 | 1"-11 | 41.70 | 58.50 | 17.50 | 30.00 | 20.60 | 21.50 | 36.00 | 41.00 | HTFS7202-16-16-NWO | 370-407 | 345 |
| 1-1/4" | 1-11/16"-12 | 1-1/4"-11 | 44.70 | 62.20 | 17.50 | 30.00 | 26.00 | 27.50 | 41.00 | 50.00 | HTFS7202-20-20-NWO | 500-550 | 275 |
| 1-1/2" | 2"-12 | 1-1/2"-11 | 48.80 | 65.80 | 17.50 | 30.00 | 32.00 | 33.00 | 50.00 | 55.00 | HTFS7202-24-24-NWO | 600-660 | 207 |
Body
Assembly

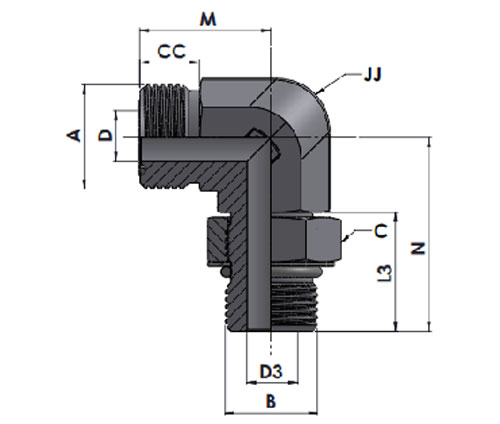

HTFS7202-NWO MFS-MABSPP 90° Elbow
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS7202-04-04-NWO | |
| Steel ,Zinc nickel plated | ZiNi | HTFS7202-04-04-NWO-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS7202-04-04-NWO-SST |
| Stainless Steel-SS316 | SS316 | HTFS7202-04-04-NWO-SS |
| Stainless Steel-SS304 | SS304 | HTFS7202-04-04-NWO-S |
