| Tube O.D. | A THREAD |
B THREAD |
M LENGTH |
N LENGTH |
CC LENGTH |
YY LENGTH |
D DRILL |
D2 DRILL |
JJ Hex |
C Hex |
Part Number | Torque N-m |
Working pressure in Bar |
| 1/2" | 13/16"-16 | 3/4"-16 | 28.00 | 88.90 | 12.80 | 26.10 | 9.60 | 9.90 | 19.05 | 23.81 | HTFS6801-LL-08-08-NWO | 43-47 | 413 |
| 3/4" | 1-3/16"-12 | 1-1/16"-12 | 37.30 | 95.00 | 17.00 | 33.80 | 15.50 | 15.50 | 30.16 | 34.93 | HTFS6801-LL-12-12-NWO | 90-95 | 413 |
| 1" | 1-7/16"-12 | 1-5/16"-12 | 41.70 | 127.00 | 17.50 | 34.60 | 20.60 | 21.40 | 36.51 | 41.28 | HTFS6801-LL-16-16-NWO | 125-135 | 413 |
Body
Assembly

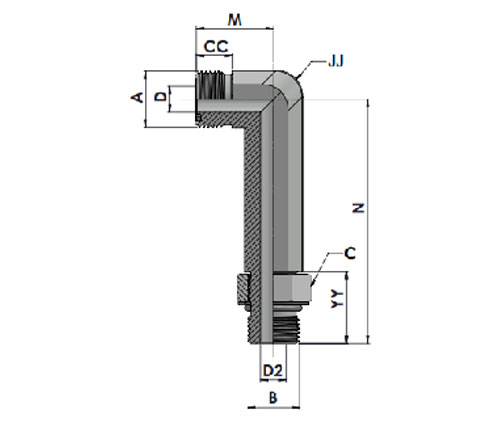

HTFS6801-LL-NWO MFS-MAORB 90° X-Long
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS6801-LL-08-08-NW0 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS6801-LL-08-08-NW0-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS6801-LL-08-08-NW0-SST |
| Stainless Steel-SS316 | SS316 | HTFS6801-LL-08-08-NW0-SS |
| Stainless Steel-SS304 | SS304 | HTFS6801-LL-08-08-NW0-S |
