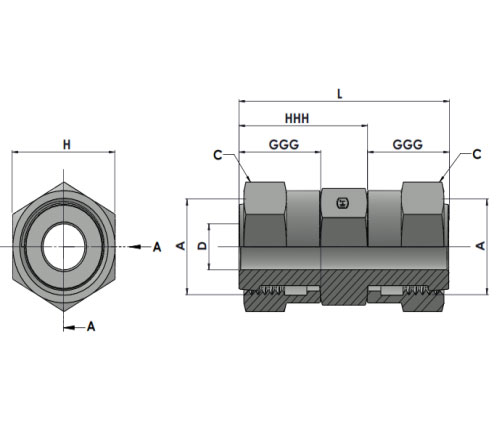

| Tube O.D. | A THREAD |
A THREAD |
L LENGTH |
GGG LENGTH | HHH LENGTH | D DRILL |
H Hex |
C Hex |
Part Number | Working pressure in Bar |
| 1/4" | 9/16"-18 | 9/16"-18 | 41.20 | 15.00 | 26.20 | 4.40 | 15.88 | 17.46 | HTFS6565-04-04 | 413 |
| 3/8" | 11/16"-16 | 11/16"-16 | 45.50 | 17.30 | 28.20 | 6.70 | 19.05 | 20.64 | HTFS6565-06-06 | 413 |
| 1/2" | 13/16"-16 | 13/16"-16 | 56.60 | 21.30 | 35.30 | 9.60 | 22.22 | 23.81 | HTFS6565-08-08 | 413 |
| 5/8" | 1"-14 | 1"-14 | 61.70 | 23.90 | 37.80 | 12.30 | 26.99 | 28.58 | HTFS6565-10-10 | 413 |
| 3/4" | 1-3/16"-12 | 1-3/16"-12 | 67.40 | 26.20 | 41.20 | 15.50 | 31.75 | 34.92 | HTFS6565-12-12 | 413 |
| 1" | 1-7/16"-12 | 1-7/16"-12 | 77.20 | 28.20 | 49.00 | 20.60 | 38.10 | 41.28 | HTFS6565-16-16 | 413 |
Body
Assembly
HTFS6565 FFSS-FFSS Straight
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS6565-04-04 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS6565-04-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS6565-04-04-SST |
| Stainless Steel-SS316 | SS316 | HTFS6565-04-04-SS |
| Stainless Steel-SS304 | SS304 | HTFS6565-04-04-S |
