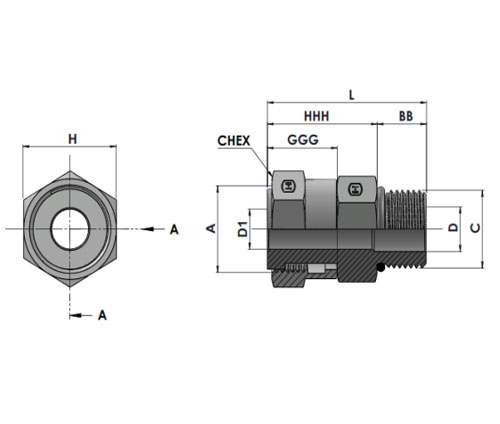

| Tube O.D. | A THREAD |
C THREAD |
L LENGTH |
GGG LENGTH | HHH LENGTH |
BB LENGTH |
D DRILL |
D1 LENGTH |
H Hex |
C Hex |
Part Number | Working pressure in Bar |
| 1/4" | 9/16"-18 | 7/16"-20 | 37.20 | 15.00 | 26.20 | 11.00 | 4.40 | 4.20 | 15.88 | 17.46 | HTFS6540-04-04-O | 413 |
| 3/8" | 11/16"-18 | 9/16"-18 | 40.20 | 17.30 | 28.20 | 12.00 | 6.70 | 6.70 | 19.05 | 20.64 | HTFS6540-06-06-O | 413 |
| 1/2" | 13/16"-16 | 9/16"-18 | 47.30 | 21.30 | 35.30 | 12.00 | 6.70 | 9.10 | 22.22 | 23.81 | HTFS6540-08-06-O | 413 |
| 1/2" | 13/16"-16 | 3/4"-16 | 49.30 | 21.30 | 35.30 | 14.00 | 9.60 | 9.10 | 22.22 | 23.81 | HTFS6540-08-08-O | 413 |
| 5/8" | 1"-14 | 7/8"-14 | 53.80 | 23.90 | 37.80 | 16.00 | 12.30 | 11.50 | 26.99 | 28.58 | HTFS6540-10-10-O | 413 |
| 5/8" | 1"-14 | 1-1/16"-12 | 56.30 | 23.90 | 37.80 | 18.50 | 15.50 | 11.50 | 31.75 | 28.58 | HTFS6540-10-12-O | 413 |
| 3/4" | 1-3/16"-12 | 1-1/16"-12 | 59.70 | 26.20 | 41.20 | 18.50 | 15.50 | 13.90 | 31.75 | 34.92 | HTFS6540-12-12-O | 413 |
| 1" | 1-7/16"-12 | 1-5/16"-12 | 67.50 | 28.20 | 49.00 | 18.50 | 20.60 | 19.90 | 38.10 | 41.28 | HTFS6540-16-16-O | 413 |
| 1-1/4" | 1-11/16"-12 | 1-5/8"-12 | 67.50 | 28.20 | 49.00 | 18.50 | 26.00 | 26.00 | 44.45 | 47.62 | HTFS6540-20-20-O | 275 |
| 1-1/2" | 2"-12 | 1-7/8"-12 | 67.50 | 28.20 | 49.00 | 18.50 | 32.00 | 32.00 | 53.98 | 57.15 | HTFS6540-24-24-O | 275 |
Body
Assembly
HTFS6540 FFSS-MORB Straight
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS6540-04-04-O | |
| Steel ,Zinc nickel plated | ZiNi | HTFS6540-04-04-O-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS6540-04-04-O-SST |
| Stainless Steel-SS316 | SS316 | HTFS6540-04-04-O-SS |
| Stainless Steel-SS304 | SS304 | HTFS6540-04-04-O-S |
