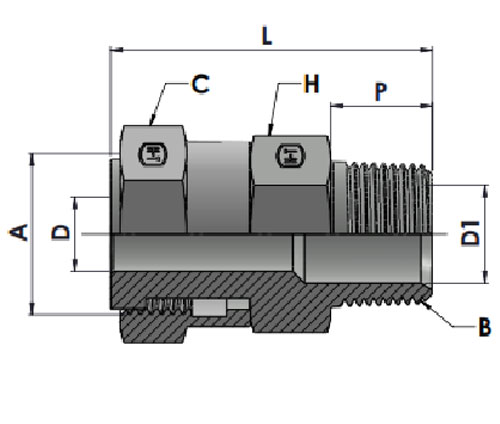

| Tube O.D. | A THREAD |
B THREAD |
L LENGTH |
P LENGTH |
D1 DRILL |
D DRILL |
H Hex |
C Hex |
Part Number | Torque N-m | Working pressure in Bar |
| 3/8" | 11/16"-18 | 1/4"-18NPTF | 42.42 | 14.20 | 7.00 | 6.70 | 19.05 | 20.64 | HTFS6505-04-06 | 14-16 | 413 |
Body
Assembly
HTFS6505 MP-FFSS Straight
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS6505-04-06 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS6505-04-06-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS6505-04-06-SST |
| Stainless Steel-SS316 | SS316 | HTFS6505-04-06-SS |
| Stainless Steel-SS304 | SS304 | HTFS6505-04-06-S |
