| Tube O.D. | A THREAD |
B THREAD |
N LENGTH |
AAA LENGTH |
D1 DRILL |
JJ Hex |
C Hex |
Part Number | Torque N-m |
Working pressure in Bar |
| 1/4" | 1/4"-19BSPP-A | 9/16"-18 | 22.35 | 26.40 | 4.20 | 19.05 | 17.46 | HTFS6503-04-04 | 14-16 | 413 |
| 3/8" | 3/8"-19BSPP-A | 11/16"-18 | 25.91 | 29.20 | 6.70 | 22.22 | 20.64 | HTFS6503-06-06 | 24-27 | 413 |
Body
Assembly

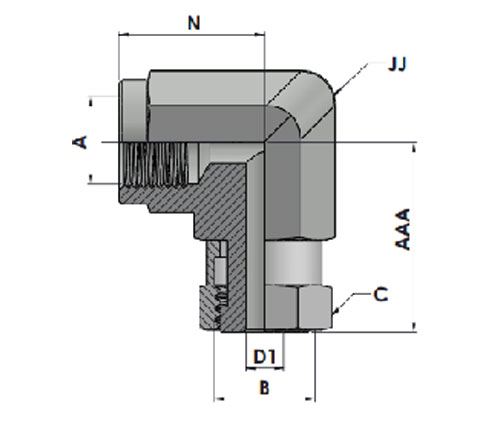

HTFS6503 FP-FFSS 90° Elbow
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS6503-04-04 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS6503-04-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS6503-04-04-SST |
| Stainless Steel-SS316 | SS316 | HTFS6503-04-04-SS |
| Stainless Steel-SS304 | SS304 | HTFS6503-04-04-S |
