| Tube O.D. | A THREAD |
B THREAD |
L1 LENGTH |
L2 LENGTH |
CC LENGTH |
D DRILL |
D1 DRILL |
JJ Hex |
C Hex |
Part Number | Torque N-m |
Working pressure in Bar |
| 1/4" | 9/16"-18 | 9/16"-18 | 16.00 | 25.15 | 9.80 | 4.40 | 4.20 | 14.29 | 17.46 | HTFS6502-04-04 | 14-16 | 413 |
| 3/8" | 11/16"-18 | 11/16"-18 | 18.80 | 28.45 | 11.20 | 6.70 | 6.70 | 19.05 | 20.64 | HTFS6502-06-06 | 24-27 | 413 |
| 1/2" | 13/16"-16 | 13/16"-16 | 20.32 | 37.85 | 12.80 | 0.60 | 9.10 | 19.05 | 23.81 | HTFS6502-08-08 | 43-47 | 413 |
| 5/8" | 1"-14 | 1"-14 | 23.37 | 38.86 | 15.50 | 12.30 | 11.50 | 26.99 | 28.58 | HTFS6502-10-10 | 60-68 | 413 |
| 3/4" | 1-3/16"-12 | 1-3/16"-12 | 25.91 | 43.94 | 17.00 | 15.50 | 13.90 | 30.16 | 34.92 | HTFS6502-12-12 | 90-95 | 413 |
| 1" | 1-7/16"-12 | 1-7/16"-12 | 29.97 | 47.50 | 17.50 | 20.60 | 19.90 | 36.51 | 41.28 | HTFS6502-16-16 | 125-135 | 413 |
| 1-1/4" | 1-11/16"-12 | 1-11/16"-12 | 32.00 | 50.29 | 17.50 | 26.00 | 26.00 | 41.28 | 47.62 | HTFS6502-20-20 | 170-190 | 275 |
Body
Assembly

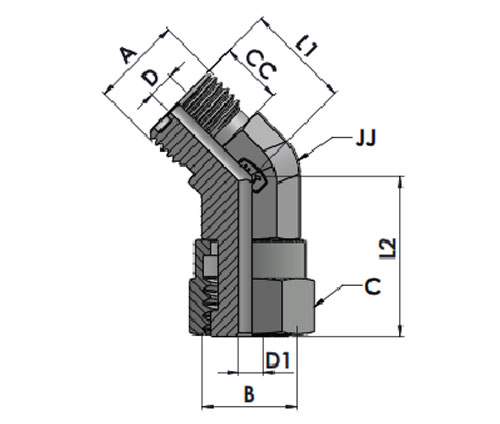

HTFS6502 MFS-FFSS 45° Elbow
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS6502-04-04 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS6502-04-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS6502-04-04-SST |
| Stainless Steel-SS316 | SS316 | HTFS6502-04-04-SS |
| Stainless Steel-SS304 | SS304 | HTFS6502-04-04-S |
