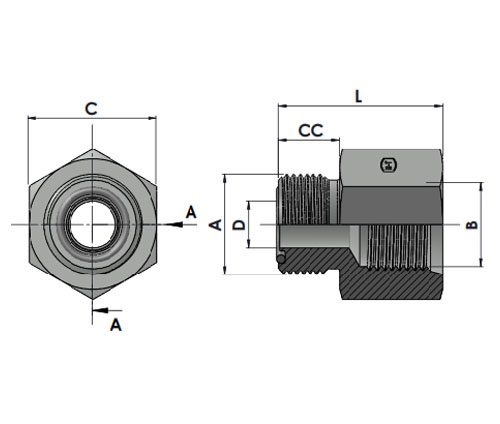

Tube O.D. | A THREAD |
B THREAD |
L LENGTH |
CC LENGTH |
D DRILL |
C Hex |
Part Number | Torque N-m | Working pressure in Bar |
1/4" | 9/16"-18 | 7/16"-20 | 27.69 | 9.80 | 4.40 | 17.46 | HTFS6410-04-04 | 14-16 | 413 |
1/2" | 13/16"-16 | 3/4"-16 | 34.54 | 12.80 | 9.60 | 26.97 | HTFS6410-08-08 | 43-47 | 413 |
1" | 1-3/16"-12 | 1-5/16"-12 | 45.47 | 17.50 | 15.50 | 41.28 | HTFS6410-16-12 | 125-135 | 413 |
1" | 1-7/16"-12 | 1-5/16"-12 | 45.72 | 17.50 | 20.60 | 41.28 | HTFS6410-16-16 | 125-135 | 413 |
1-1/4" | 1-11/16"-12 | 1-5/8"-12 | 47.24 | 17.50 | 26.00 | 53.97 | HTFS6410-20-20 | 170-190 | 275 |
1-1/2" | 2"-12 | 1-7/8"-12 | 47.50 | 17.50 | 32.00 | 63.50 | HTFS6410-24-24 | 200-225 | 275 |
