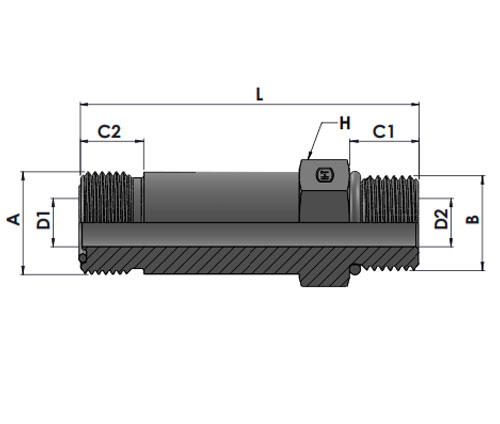

| Tube O.D. | A THREAD |
B THREAD MORB |
L LENGTH |
C1 LENGTH |
C2 LENGTH |
D1 DRILL |
D2 DRILL |
H Hex |
Part Number | Torque N-m | Working pressure in Bar |
| 1/4" | 9/16"-18 | 7/16"-20 | 52.83 | 9.80 | 9.80 | 4.40 | 4.40 | 20.64 | HTFS2764-04-04 | 14-16 | 413 |
| 3/8" | 11/16"-18 | 9/16"-18 | 57.15 | 11.20 | 11.20 | 6.70 | 6.70 | 25.40 | HTFS2764-06-06 | 24-27 | 413 |
| 1/2" | 13/16"-16 | 3/4"-16 | 62.48 | 12.80 | 12.80 | 9.60 | 9.60 | 28.58 | HTFS2764-08-08 | 43-47 | 413 |
| 5/8" | 1"-14 | 7/8"-14 | 69.60 | 15.50 | 15.50 | 12.30 | 12.30 | 33.34 | HTFS2764-10-10 | 60-68 | 413 |
| 3/4" | 1-3/16"-12 | 1-1/16"-12 | 73.41 | 17.00 | 17.00 | 15.50 | 15.50 | 38.10 | HTFS2764-12-12 | 90-95 | 413 |
| 1" | 1-7/16"-12 | 1-5/16"-12 | 73.66 | 17.50 | 17.50 | 20.60 | 20.60 | 44.45 | HTFS2764-16-16 | 125-135 | 413 |
| 1-1/4" | 1-11/16"-12 | 1-5/8"-12 | 73.66 | 17.50 | 17.50 | 26.00 | 26.00 | 50.80 | HTFS2764-20-20 | 170-190 | 275 |
| 1-1/2" | 2"-12 | 1-7/8"-12 | 73.66 | 17.50 | 17.50 | 32.00 | 32.00 | 60.33 | HTFS2764-24-24 | 200-225 | 275 |
Body
Assembly
HTFS2764 MFS-MORB Bulkhead Straight
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS2764-04-04 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS2764-04-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS2764-04-04-SST |
| Stainless Steel-SS316 | SS316 | HTFS2764-04-04-SS |
| Stainless Steel-SS304 | SS304 | HTFS2764-04-04-S |
