| Tube O.D. | A1 THREAD |
A2 THREAD |
A3 THREAD |
M1 LENGTH |
M2 LENGTH |
S LENGTH |
C1 LENGTH |
C2 LENGTH |
WW LENGTH |
D1 DRILL |
D2 DRILL |
D3 DRILL |
JJ Hex |
Part Number | Torque N-m | Working pressure in Bar |
| 1/4" | 9/16"-18 | 9/16"-18 | 9/16"-18 | 21.50 | 21.50 | 47.00 | 9.80 | 9.80 | 31.50 | 4.40 | 4.40 | 4.40 | 14.29 | HTFS2703-04-04-04 | 14-16 | 413 |
| 3/8" | 11/16"-18 | 11/16"-18 | 11/16"-18 | 25.00 | 25.00 | 52.00 | 11.20 | 11.20 | 34.00 | 6.70 | 6.70 | 6.70 | 19.05 | HTFS2703-06-06-08 | 24-27 | 413 |
| 1/2" | 13/16"-16 | 13/16"-16 | 13/16"-16 | 28.00 | 28.00 | 55.50 | 12.80 | 12.80 | 36.50 | 9.60 | 9.60 | 9.60 | 19.05 | HTFS2703-08-08-08 | 43-47 | 413 |
| 5/8" | 1"-14 | 1"-14 | 1"-14 | 33.30 | 33.30 | 63.00 | 15.50 | 15.50 | 40.60 | 12.30 | 12.30 | 12.30 | 26.99 | HTFS2703-10-10-10 | 60-68 | 413 |
| 3/4" | 1-3/16"-12 | 1-3/16"-12 | 1-3/16"-12 | 37.30 | 37.30 | 67.20 | 17.00 | 17.00 | 41.70 | 15.50 | 15.50 | 15.50 | 30.16 | HTFS2703-12-12-12 | 90-95 | 413 |
| 1" | 1-7/16"-12 | 1-7/16"-12 | 1-7/16"-12 | 41.70 | 41.70 | 71.20 | 17.50 | 17.50 | 42.20 | 20.60 | 20.60 | 20.60 | 36.51 | HTFS2703-16-16-16 | 125-135 | 413 |
| 1-1/4" | 1-11/16"-12 | 1-11/16"-12 | 1-11/16"-12 | 44.70 | 44.70 | 75.50 | 17.50 | 17.50 | 42.20 | 26.00 | 26.00 | 26.00 | 41.28 | HTFS2703-20-20-20 | 170-190 | 275 |
| 1-1/2" | 2"-12 | 2"-12 | 2"-12 | 48.80 | 48.80 | 79.50 | 17.50 | 17.50 | 42.20 | 32.00 | 32.00 | 32.00 | 47.62 | HTFS2703-24-24-24 | 200-225 | 275 |
Body
Assembly

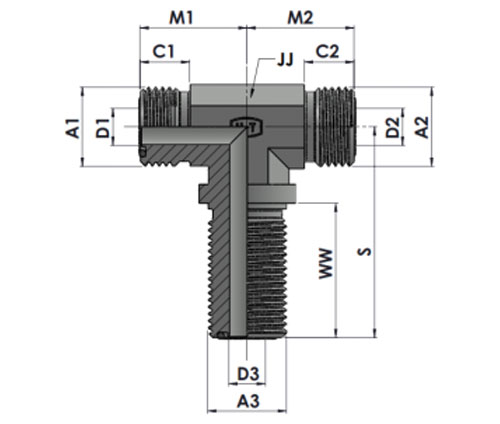

HTFS2703 MFS-MFS-MFS Bulkhead Tee
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS2703-04-04-04 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS2703-04-04-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS2703-04-04-04-SST |
| Stainless Steel-SS316 | SS316 | HTFS2703-04-04-04-SS |
| Stainless Steel-SS304 | SS304 | HTFS2703-04-04-04-S |
