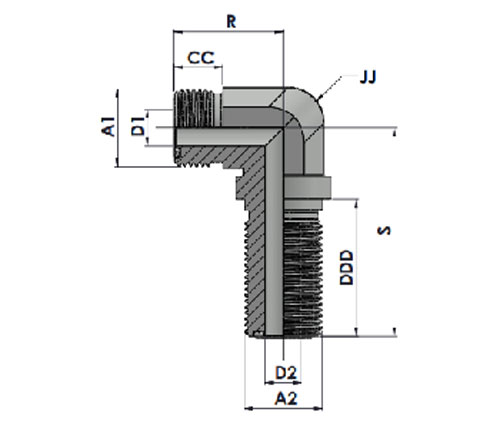

| Tube O.D. | A1 THREAD |
A2 THREAD |
R LENGTH |
S LENGTH |
CC LENGTH |
DDD LENGTH |
D1 DRILL |
D2 DRILL |
JJ Hex |
Part Number | Torque N-m | Working pressure in Bar |
| 1/4" | 9/16"-18 | 9/16"-18 | 22.50 | 47.00 | 9.80 | 29.00 | 4.40 | 4.40 | 14.29 | HTFS2701-04-04 | 14-16 | 413 |
| 3/8" | 11/16"-18 | 11/16"-18 | 26.00 | 52.00 | 11.20 | 31.50 | 6.70 | 6.70 | 19.05 | HTFS2701-06-06 | 24-27 | 413 |
| 1/2" | 13/16"-16 | 13/16"-16 | 29.00 | 55.50 | 12.80 | 33.50 | 9.60 | 9.60 | 19.05 | HTFS2701-08-08 | 43-47 | 413 |
| 5/8" | 1"-14 | 1"-14 | 34.50 | 63.00 | 15.50 | 37.60 | 12.30 | 12.30 | 26.99 | HTFS2701-10-10 | 60-68 | 413 |
| 3/4" | 1-3/16"-12 | 1-3/16"-12 | 38.50 | 67.20 | 17.00 | 38.70 | 15.50 | 15.50 | 30.16 | HTFS2701-12-12 | 90-95 | 413 |
| 1" | 1-7/16"-12 | 1-7/16"-12 | 42.50 | 71.20 | 17.50 | 39.20 | 20.60 | 20.60 | 36.51 | HTFS2701-16-16 | 125-135 | 413 |
| 1-1/4" | 1-11/16"-12 | 1-11/16"-12 | 45.50 | 75.50 | 17.50 | 39.20 | 26.00 | 26.00 | 41.28 | HTFS2701-20-20 | 170-190 | 275 |
| 1-1/2" | 2"-12 | 2"-12 | 49.50 | 79.50 | 17.50 | 39.20 | 32.00 | 32.00 | 47.62 | HTFS2701-24-24 | 200-225 | 275 |
Body
Assembly
HTFS2701 MFS-MFS Bulkhead 90° Elbow
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS2701-04-04 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS2701-04-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS2701-04-04-SST |
| Stainless Steel-SS316 | SS316 | HTFS2701-04-04-SS |
| Stainless Steel-SS304 | SS304 | HTFS2701-04-04-S |
