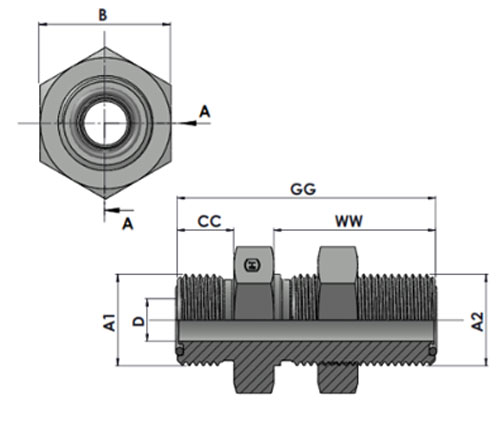

| Tube O.D. | A1 THREAD |
A2 THREAD |
GG LENGTH |
CC LENGTH |
WW LENGTH |
D DRILL |
B Hex |
Part Number | Torque N-m | Working pressure in Bar |
| 1/4" | 9/16"-18 | 9/16"-18 | 48.20 | 9.80 | 31.50 | 4.40 | 20.64 | HTFS2700-04-04 | 14-16 | 413 |
| 3/8" | 11/16"-18 | 11/16"-18 | 53.20 | 11.20 | 34.00 | 6.70 | 25.40 | HTFS2700-06-06 | 24-27 | 413 |
| 1/2" | 13/16"-16 | 13/16"-16 | 58.30 | 12.80 | 36.50 | 9.60 | 28.58 | HTFS2700-08-08 | 43-47 | 413 |
| 5/8" | 1"-14 | 1"-14 | 66.60 | 15.50 | 40.60 | 12.30 | 33.34 | HTFS2700-10-10 | 60-68 | 413 |
| 3/4" | 1-3/16"-12 | 1-3/16"-12 | 69.20 | 17.00 | 41.70 | 15.50 | 38.10 | HTFS2700-12-12 | 90-95 | 413 |
| 1" | 1-7/16"-12 | 1-7/16"-12 | 70.20 | 17.50 | 42.20 | 20.60 | 44.45 | HTFS2700-16-16 | 125-135 | 413 |
| 1-1/4" | 1-11/16"-12 | 1-11/16"-12 | 70.20 | 17.50 | 42.20 | 26.00 | 50.80 | HTFS2700-20-20 | 170-190 | 275 |
| 1-1/2" | 2"-12 | 2"-12 | 70.20 | 17.50 | 42.20 | 32.00 | 60.33 | HTFS2700-24-24 | 200-225 | 275 |
Body
Assembly
HTFS2700 MFS-MFS Bulkhead Union
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS2700-04-04 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS2700-04-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS2700-04-04-SST |
| Stainless Steel-SS316 | SS316 | HTFS2700-04-04-SS |
| Stainless Steel-SS304 | SS304 | HTFS2700-04-04-S |
