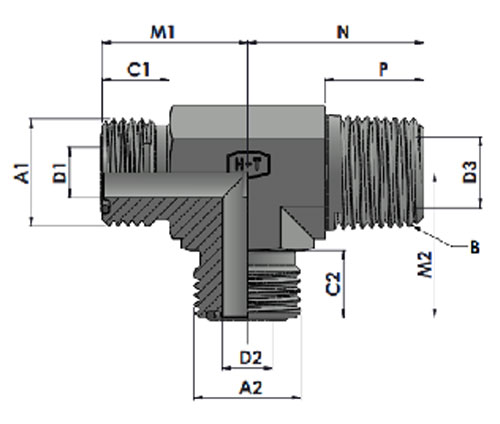

| Tube O.D. | A 1 THREAD |
A2 THREAD |
B THREAD |
M1 LENGTH |
M2 LENGTH |
N LENGTH |
D1 DRILL |
D2 DRILL |
D3 DRILL |
C1 LENGTH |
C2 LENGTH |
P LENGTH |
JJ Hex |
Part Number | Working pressure in Bar |
| 1/4" | 9/16"-18 | 9/16"-18 | 1/4"-18NPTF | 21.50 | 21.50 | 27.70 | 4.40 | 4.40 | 7.00 | 9.80 | 9.80 | 14.20 | 14.29 | HTFS2605-04-04-04 | 413 |
| 3/8" | 11/16"-18 | 11/16"-18 | 3/8"-18NPTF | 25.00 | 25.00 | 31.00 | 6.70 | 6.70 | 10.30 | 11.20 | 11.20 | 14.20 | 19.05 | HTFS2605-06-06-06 | 413 |
| 1/2" | 13/16"-16 | 13/16"-16 | 1/2"-14NPTF | 28.00 | 28.00 | 37.40 | 9.60 | 9.60 | 13.50 | 12.80 | 12.80 | 19.00 | 19.05 | HTFS2605-08-08-08 | 413 |
| 3/4" | 1-3/16"-12 | 1-3/16"-12 | 3/4"-14NPTF | 37.30 | 37.30 | 40.40 | 15.50 | 15.50 | 18.26 | 17.00 | 17.00 | 19.00 | 30.16 | HTFS2605-12-12-12 | 413 |
| 1" | 1-7/16"-12 | 1-7/16"-12 | 1"-11-1/2"NPTF | 41.70 | 41.70 | 50.00 | 20.60 | 20.60 | 23.80 | 17.50 | 17.50 | 23.90 | 36.51 | HTFS2605-16-16-16 | 413 |
Body
Assembly
HTFS2605 MFS-MP-MFS Tee
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS2605-04-04-04 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS2605-04-04-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS2605-04-04-04-SST |
| Stainless Steel-SS316 | SS316 | HTFS2605-04-04-04-SS |
| Stainless Steel-SS304 | SS304 | HTFS2605-04-04-04-S |
