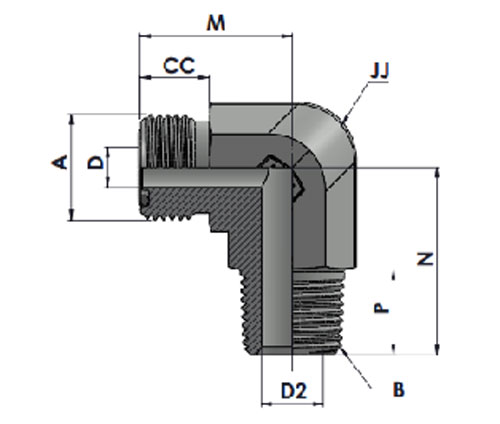

| Tube O.D. | A THREAD |
B THREAD |
D DRILL |
D 2 DRILL |
M LENGTH |
N LENGTH |
P LENGTH |
CC LENGTH |
JJ Hex |
Part Number | Torque N-m |
Working pressure in Bar |
| 1/4" | 9/16"-18 | 1/4"-18NPTF | 4.40 | 7.00 | 21.50 | 27.70 | 14.20 | 9.80 | 14.29 | HTFS2501-04-04 | 14-16 | 413 |
| 3/8" | 11/16"-18 | 3/8"-18NPTF | 6.70 | 10.30 | 25.00 | 31.00 | 14.20 | 11.20 | 19.05 | HTFS2501-06-06 | 24-27 | 413 |
| 1/2" | 13/16"-16 | 1/2"-14NPTF | 9.60 | 13.50 | 28.00 | 33.30 | 19.00 | 12.80 | 19.05 | HTFS2501-08-08 | 43-47 | 413 |
| 1" | 1-7/16"-12 | 1"-11-1/2"NPTF | 20.60 | 23.80 | 41.70 | 50.00 | 19.00 | 17.50 | 36.51 | HTFS2501-16-16 | 125-135 | 413 |
| 1-1/4" | 1-11/16"-12 | 1-1/4"-11-1/2"NPTF | 26.00 | 31.80 | 44.70 | 60.50 | 23.90 | 17.50 | 41.28 | HTFS2501-20-20 | 170-190 | 275 |
| 1-1/2" | 2"-12 | 1-1/2"-11-1/2"NPTF | 32.00 | 38.00 | 48.80 | 67.00 | 24.60 | 17.50 | 47.62 | HTFS2501-24-24 | 200-225 | 275 |
Body
Assembly
HTFS2501 MFS-MP 90° Elbow
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS2501-04-04 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS2501-04-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS2501-04-04-SST |
| Stainless Steel-SS316 | SS316 | HTFS2501-04-04-SS |
| Stainless Steel-SS304 | SS304 | HTFS2501-04-04-S |
