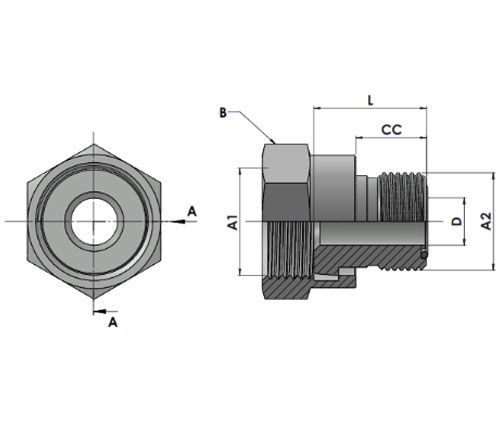

| A1 Tube O.D. | A2 Tube O.D. |
A1 THREAD |
A2 HREAD |
L | CC | D | Part Number | Working pressure in Bar |
| 1/2" | 1/4" | 13/16"-16 | 9/16"-18 | 21.80 | 9.80 | 4.40 | HTFS2406-08-04 | 413 |
| 5/8" | 1/4" | 1"-14 | 9/16"-18 | 22.80 | 9.80 | 4.40 | HTFS2406-10-04 | 413 |
| 5/8" | 3/8" | 1"-14 | 11/16"-18 | 24.10 | 11.20 | 6.70 | HTFS2406-10-06 | 413 |
| 5/8" | 1/2" | 1"-14 | 13/16"-16 | 25.70 | 12.80 | 9.60 | HTFS2406-10-08 | 413 |
| 3/4" | 1/4" | 1-3/16"-12 | 9/16"-18 | 24.80 | 9.80 | 4.40 | HTFS2406-12-04 | 413 |
| 3/4" | 3/8" | 1-3/16"-12 | 11/16"-18 | 26.20 | 11.20 | 6.70 | HTFS2406-12-06 | 413 |
| 3/4" | 1/2" | 1-3/16"-12 | 13/16"-16 | 27.70 | 12.80 | 9.60 | HTFS2406-12-08 | 413 |
| 1" | 1/2" | 1-7/16"-12 | 13/16"-16 | 29.20 | 12.80 | 9.60 | HTFS2406-16-08 | 413 |
| 1" | 5/8" | 1-7/16"-12 | 1"-14 | 32.00 | 15.50 | 12.30 | HTFS2406-16-10 | 413 |
| 1-1/4" | 3/4" | 1-11/16"-12 | 1-3/16"-12 | 33.50 | 17.00 | 15.50 | HTFS2406-20-12 | 275 |
| 1-1/2" | 1" | 2"-12 | 1-7/16"-12 | 34.00 | 17.50 | 20.60 | HTFS2406-24-16 | 275 |
| 1-1/2" | 1-1/4" | 2"-12 | 1-11/16"-12 | 34.00 | 17.50 | 26.00 | HTFS2406-24-20 | 275 |
Body
Assembly
HTFS2406 FFS-MFS Tube End Reducer
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS2406-08-04 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS2406-08-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS2406-08-04-SST |
| Stainless Steel-SS316 | SS316 | HTFS2406-08-04-SS |
| Stainless Steel-SS304 | SS304 | HTFS2406-08-04-S |
