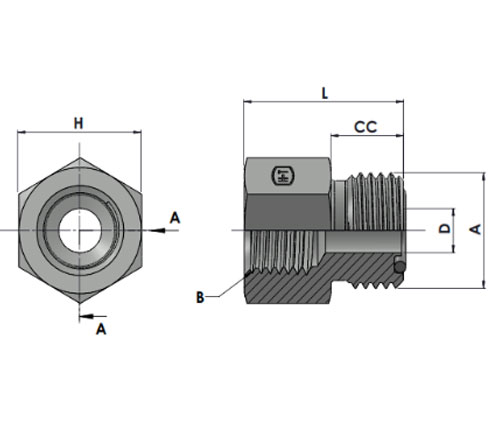

| Tube O.D. | A THREAD |
B THREAD |
H Hex |
L | CC | D | Part Number | Torque N-m | Working pressure in Bar |
| 1/4" | 9/16"-18 | 1/4"-18NPTF | 19.05 | 31.24 | 9.80 | 4.40 | HTFS2405-04-04 | 14-16 | 413 |
| 3/8" | 11/16"-18 | 3/8"-18NPTF | 19.05 | 32.77 | 11.20 | 6.70 | HTFS2405-06-06 | 24-27 | 413 |
Body
Assembly
HTFS2405 MFS-FP Straight
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS2405-04-04 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS2405-04-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS2405-04-04-SST |
| Stainless Steel-SS316 | SS316 | HTFS2405-04-04-SS |
| Stainless Steel-SS304 | SS304 | HTFS2405-04-04-S |
