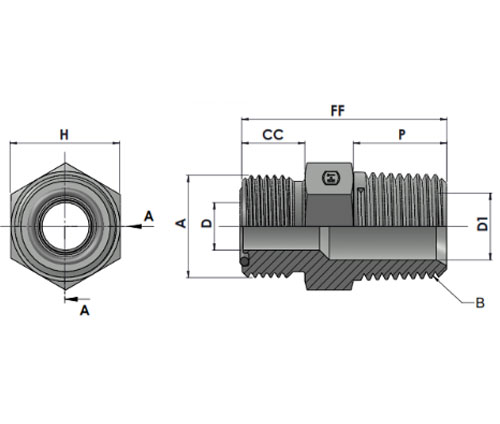

| Tube O.D. | A THREAD |
B THREAD |
H Hex |
FF | CC | P | D | D1 | Part Number | Torque N-m | Working pressure in Bar |
| 1/4" | 9/16"-18 | 1/4"-18NPTF | 15.88 | 32.00 | 9.80 | 14.20 | 4.40 | 5.60 | HTFS2404-04-04 | 14-16 | 413 |
| 3/8" | 11/16"-18 | 3/8"-18NPTF | 19.05 | 34.00 | 11.20 | 14.20 | 6.70 | 8.40 | HTFS2404-06-06 | 24-27 | 413 |
| 1/2" | 13/16"-16 | 1/2"-14NPTF | 22.22 | 41.66 | 12.80 | 19.00 | 9.60 | 11.90 | HTFS2404-08-08 | 43-47 | 413 |
| 3/4" | 1-3/16"-12 | 3/4"-14NPTF | 31.75 | 49.28 | 17.00 | 19.00 | 15.50 | 16.50 | HTFS2404-12-12 | 90-95 | 413 |
| 1" | 1-7/16"-12 | 1"-11-1/2NPTF | 38.10 | 55.63 | 17.50 | 23.90 | 20.60 | 21.10 | HTFS2404-16-16 | 125-135 | 413 |
| 1-1/4" | 1-11/16"-12 | 1-1/4"-11-1/2NPTF | 44.45 | 58.42 | 17.50 | 24.60 | 26.00 | 28.40 | HTFS2404-20-20 | 170-190 | 275 |
| 1-1/2" | 2"-12 | 1-1/2"-11-1/2NPTF | 53.98 | 60.96 | 17.50 | 25.40 | 32.00 | 34.50 | HTFS2404-24-24 | 200-225 | 275 |
Body
Assembly
HTFS2404 MFS-MP Straight
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS2404-04-04 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS2404-04-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS2404-04-04-SST |
| Stainless Steel-SS316 | SS316 | HTFS2404-04-04-SS |
| Stainless Steel-SS304 | SS304 | HTFS2404-04-04-S |
