| Tube O.D. | A THREAD |
H Hex |
L | D | CC | Part Number | Torque N-m |
Working pressure in Bar |
| 1/4" | 9/16"-18 | 15.88 | 27.50 | 4.40 | 9.80 | HTFS2403-04-04 | 14-16 | 413 |
| 3/8" | 11/16"-18 | 19.05 | 31.10 | 6.70 | 11.20 | HTFS2403-06-06 | 24-27 | 413 |
| 1/2" | 13/16"-16 | 22.22 | 35.40 | 9.60 | 12.80 | HTFS2403-08-08 | 43-47 | 413 |
| 5/8" | 1"-14 | 26.99 | 42.60 | 12.30 | 15.50 | HTFS2403-10-10 | 60-68 | 413 |
| 3/4" | 1-3/16"-12 | 31.75 | 47.10 | 15.50 | 17.00 | HTFS2403-12-12 | 90-95 | 413 |
| 1" | 1-7/16"-12 | 38.10 | 49.30 | 20.60 | 17.50 | HTFS2403-16-16 | 125-135 | 413 |
| 1-1/4" | 1-11/16"-12 | 44.45 | 51.30 | 26.00 | 17.50 | HTFS2403-20-20 | 170-190 | 275 |
| 1-1/2" | 2"-12 | 53.98 | 53.10 | 32.00 | 17.50 | HTFS2403-24-24 | 200-225 | 275 |
Body
Assembly

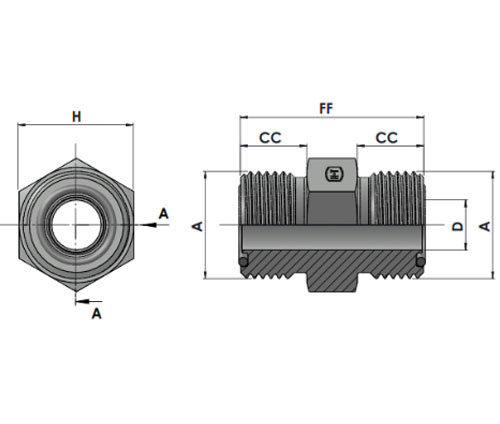

HTFS2403 MFS-MFS Straight
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS2403-04-04 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS2403-04-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS2403-04-04-SST |
| Stainless Steel-SS316 | SS316 | HTFS2403-04-04-SS |
| Stainless Steel-SS304 | SS304 | HTFS2403-04-04-S |
