| Tube O.D. | A THREAD |
H Hex |
L | D | E | G | Part Number | Torque N-m | Working pressure in Bar |
| 1/2" | 13/16"-16 | 22.22 | 48.51 | 9.60 | 12.85 | 8.50 | HTFS0406-08-08 | 43-47 | 413 |
| 1/2" | 13/16"-16 | 26.99 | 48.51 | 9.60 | 16.03 | 8.50 | HTFS0406-10-08 | 43-47 | 413 |
Body
Assembly

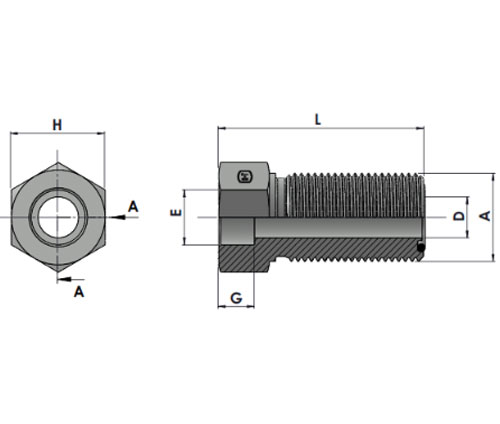

HTFS0406 Bore-MFS Bulkhead
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS0406-08-08 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS0406-08-08-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS0406-08-08-SST |
| Stainless Steel-SS316 | SS316 | HTFS0406-08-08-SS |
| Stainless Steel-SS304 | SS304 | HTFS0406-08-08-S |
