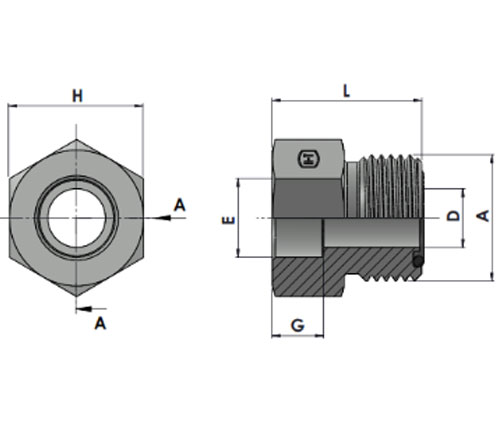

| Tube O.D. | A THREAD |
H Hex |
L | D | E | G | Part Number | Torque N-m | Working pressure in Bar |
| 1/4" | 9/16"-18 | 15.88 | 22.00 | 4.40 | 6.50 | 8.50 | HTFS0403-04-04 | 14-16 | 413 |
| 3/8" | 11/16"-18 | 19.05 | 23.10 | 6.70 | 9.68 | 8.50 | HTFS0403-06-06 | 24-27 | 413 |
| 1/2" | 13/16"-16 | 22.22 | 24.70 | 9.60 | 12.85 | 8.50 | HTFS0403-08-08 | 43-47 | 413 |
| 5/8" | 1"-14 | 26.99 | 27.40 | 12.30 | 16.03 | 8.50 | HTFS0403-10-10 | 60-68 | 413 |
| 3/4" | 1-3/16"-12 | 31.75 | 33.70 | 15.50 | 19.23 | 12.50 | HTFS0403-12-12 | 90-95 | 413 |
| 1" | 1-7/16"-12 | 38.10 | 38.60 | 20.60 | 25.58 | 14.00 | HTFS0403-16-16 | 125-135 | 413 |
| 1-1/4" | 1-11/16"-12 | 44.45 | 38.60 | 26.00 | 31.95 | 14.00 | HTFS0403-20-20 | 170-190 | 275 |
| 1-1/2" | 2"-12 | 53.98 | 38.60 | 32.00 | 38.30 | 14.00 | HTFS0403-24-24 | 200-225 | 275 |
Body
Assembly
HTFS0403 Bore-MFS Straight
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS0403-04-04 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS0403-04-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS0403-04-04-SST |
| Stainless Steel-SS316 | SS316 | HTFS0403-04-04-SS |
| Stainless Steel-SS304 | SS304 | HTFS0403-04-04-S |
