| Tube O.D. | A THREAD |
B Hex |
G | Part Number | Torque N-m |
Working pressure in Bar |
| 1/4" | 9/16"-18 | 17.46 | 8.50 | HTFS0318-04 | 14-16 | 413 |
| 3/8" | 11/16"-18 | 20.64 | 8.50 | HTFS0318-06 | 24-27 | 413 |
| 1/2" | 13/16"-16 | 23.81 | 8.50 | HTFS0318-08 | 43-47 | 413 |
| 5/8" | 1"-14 | 28.58 | 8.50 | HTFS0318-10 | 60-68 | 413 |
| 3/4" | 1-3/16"-12 | 34.92 | 12.50 | HTFS0318-12 | 90-95 | 413 |
| 1" | 1-7/16"-12 | 41.28 | 14.00 | HTFS0318-16 | 125-135 | 413 |
| 1-1/4" | 1-11/16"-12 | 47.62 | 14.00 | HTFS0318-20 | 170-190 | 275 |
| 1-1/2" | 2"-12 | 57.15 | 14.00 | HTFS0318-24 | 200-225 | 275 |
Body
Assembly

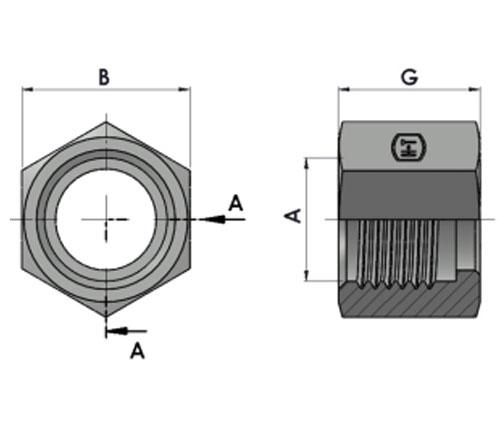

HTFS0318 Tube Nut
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HTFS0318-04 | |
| Steel ,Zinc nickel plated | ZiNi | HTFS0318-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HTFS0318-04-SST |
| Stainless Steel-SS316 | SS316 | HTFS0318-04-SS |
| Stainless Steel-SS304 | SS304 | HTFS0318-04-S |
