| Tube O.D. | A THREAD |
B THREAD |
C THREAD |
Y Hex |
C2 Hex |
M1 | M2 | M7 | J4 | D DRILL |
Part Number | Torque N-m | Working pressure in Bar |
| 1/4" | 7/16"-20UNF-2B | 7/16"-20UNF-2B | 7/16"-20UNF-2A | 19.05 | 14.28 | 16.00 | 16.00 | 31.20 | 18.20 | 4.40 | HT6835-04-04-04-NWO | 15-16 | 345 |
| 3/8" | 9/16"-18UNF-2B | 9/16"-18UNF-2B | 9/16"-18UNF-2A | 22.22 | 17.46 | 19.10 | 19.10 | 35.10 | 19.10 | 7.50 | HT6835-06-06-06-NWO | 24-28 | 345 |
| 1/2" | 3/4"-16UNF-2B | 3/4"-16UNF-2B | 3/4"-16UNF-2A | 26.97 | 22.22 | 22.40 | 22.40 | 40.40 | 21.90 | 9.90 | HT6835-08-08-08-NWO | 49-53 | 310 |
| 5/8" | 7/8"-14UNF-2B | 7/8"-14UNF-2B | 7/8"-14UNF-2A | 26.97 | 25.40 | 25.90 | 25.90 | 46.00 | 25.40 | 12.30 | HT6835-10-10-10-NWO | 77-85 | 240 |
| 3/4" | 1-1/16"-12UN-2B | 1-1/16"-12UN-2B | 1-1/16"-12UN-2A | 33.30 | 31.75 | 30.70 | 30.70 | 50.80 | 21.90 | 12.30 | HT6835-12-12-12-NWO | 107-119 | 240 |
| 1" | 1-5/16"-12UN-2B | 1-5/16"-12UN-2B | 1-5/16"-12UN-2A | 41.27 | 38.10 | 33.80 | 33.80 | 57.20 | 23.10 | 21.40 | HT6835-16-16-16-NWO | 147-154 | 210 |
Product
Assembly

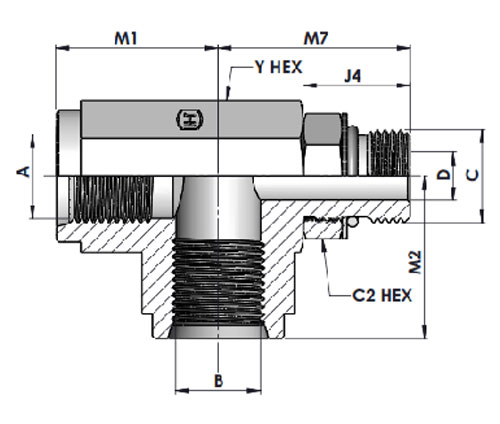

HT6835 FORB-FORB-MORB TEE
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT6835-04-04-04-NWO | |
| Steel ,Zinc nickel plated | ZiNi | HT6835-04-04-04-NWO-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT6835-04-04-04-NWO-SST |
| Stainless Steel-SS316 | SS316 | HT6835-04-04-04-NWO-SS |
| Stainless Steel-SS304 | SS304 | HT6835-04-04-04-NWO-S |
