| Tube O.D. | A THREAD |
B THREAD |
Y Hex | C1 Hex |
C2 Hex |
M1 | M2 | J4 | J5 | D DRILL |
D1 DRILL |
Part Number | Torque N-m | Working pressure in Bar |
| 1/4" | 7/16"-20UNF-2A | 7/16"-20UNF-2A | 11.13 | 14.28 | 14.28 | 26.2 | 26.2 | 18.20 | 18.20 | 4.4 | 4.4 | HT6807-04-04-NWO | 15-16 | 345 |
| 3/8" | 9/16"-18UNF-2A | 9/16"-18UNF-2A | 14.27 | 17.46 | 17.46 | 31.8 | 31.8 | 19.10 | 19.10 | 7.50 | 7.50 | HT6807-06-06-NWO | 24-28 | 345 |
| 1/2" | 3/4"-16UNF-2A | 3/4"-16UNF-2A | 19.05 | 22.22 | 22.22 | 36.8 | 36.8 | 21.90 | 21.90 | 9.90 | 9.90 | HT6807-08-08-NWO | 49-53 | 310 |
| 3/4" | 1-1/16"-12UN-2A | 1-1/16"-12UN-2A | 26.97 | 31.75 | 31.75 | 49.3 | 49.3 | 21.90 | 21.90 | 12.30 | 12.30 | HT6807-12-12-NWO | 107-119 | 240 |
| 1" | 1-5/16"-12UN-2A | 1-5/16"-12UN-2A | 33.32 | 38.10 | 38.10 | 52.1 | 52.1 | 23.10 | 23.10 | 21.40 | 21.40 | HT6807-16-16-NWO | 147-154 | 210 |
| 1-1/4" | 1-5/8"-12UN-2A | 1-5/8"-12UN-2A | 41.28 | 47.60 | 47.60 | 57.2 | 57.2 | 29.00 | 29.00 | 27.40 | 27.40 | HT6807-20-20-NWO | 172-181 | 170 |
| 1-1/2" | 1-7/8"-12UN-2A | 1-7/8"-12UN-2A | 47.63 | 53.97 | 53.97 | 60.7 | 60.7 | 29.00 | 29.00 | 33.30 | 33.30 | HT6807-24-24-NWO | 215-226 | 140 |
Product
Assembly

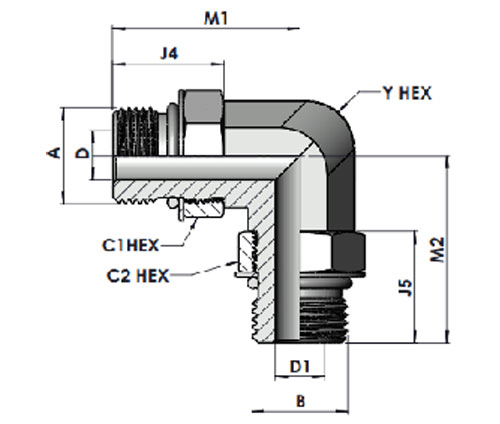

HT6807 MAORB-MAORB 90°
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT6807-04-04-NWO | |
| Steel ,Zinc nickel plated | ZiNi | HT6807-04-04-NWO-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT6807-04-04-NWO-SST |
| Stainless Steel-SS316 | SS316 | HT6807-04-04-NWO-SS |
| Stainless Steel-SS304 | SS304 | HT6807-04-04-NWO-S |
