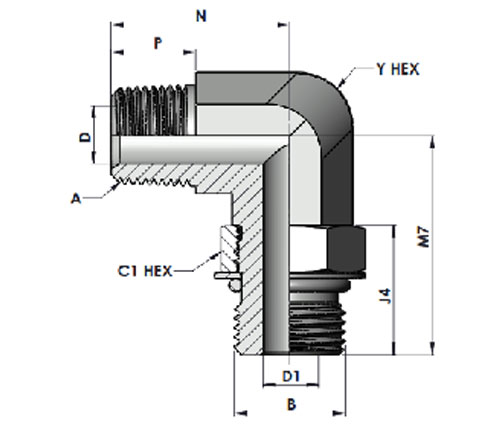

| Tube O.D. | A THREAD |
B THREAD |
Y Hex | C1 Hex |
N | M7 | P | J4 | D DRILL |
D1 DRILL |
Part Number | Torque N-m | Working pressure in Bar |
| 1/4" | 1/4"-18NPTF-2 | 7/16"-20UNF-2A | 14.27 | 14.28 | 27.70 | 30.20 | 9.70 | 18.20 | 4.8 | 4.4 | HT6806-04-04-NWO | 15-16 | 345 |
| 3/8" | 3/8"-18NPTF-2 | 9/16"-18UNF-2A | 19.05 | 17.46 | 31.00 | 33.50 | 14.20 | 19.10 | 7.00 | 7.50 | HT6806-06-06-NWO | 24-28 | 345 |
| 1/2" | 1/2"-14NPTF-2 | 3/4"-16UNF-2A | 22.23 | 22.22 | 37.30 | 39.10 | 14.20 | 21.90 | 10.30 | 9.90 | HT6806-08-08-NWO | 49-53 | 310 |
| 3/4" | 3/4"-14NPTF-2 | 1-1/16"-12UN-2A | 26.97 | 31.75 | 40.40 | 49.30 | 19.00 | 21.90 | 18.30 | 12.30 | HT6806-12-12-NWO | 107-119 | 240 |
| 1" | 1"-11-1/2NPTF-2 | 1-5/16"-12UN-2A | 33.32 | 38.10 | 50.00 | 52.10 | 23.90 | 23.10 | 23.80 | 21.40 | HT6806-16-16-NWO | 147-154 | 210 |
| 1-1/4" | 1-1/4"-11-1/2NPTF-2 | 1-5/8"-12UN-2A | 41.28 | 47.60 | 60.50 | 57.20 | 24.60 | 29.00 | 31.70 | 27.40 | HT6806-20-20-NWO | 172-181 | 170 |
| 1-1/2" | 1-1/2"-11-1/2NPTF-2 | 1-7/8"-12UN-2A | 47.63 | 53.97 | 67.10 | 60.70 | 25.40 | 29.00 | 38.00 | 33.30 | HT6806-24-24-NWO | 215-226 | 140 |
| 1-1/4" | 2"-11-1/2NPTF-2 | 2"-12UN-2A | 63.50 | 69.85 | 76.20 | 73.40 | 26.20 | 29.00 | 49.00 | 45.20 | HT6806-32-32-NWO | 332-350 | 105 |
Product
Assembly
HT6806 MAORB-MP 90°
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT6806-04-04-NWO | |
| Steel ,Zinc nickel plated | ZiNi | HT6806-04-04-NWO-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT6806-04-04-NWO-SST |
| Stainless Steel-SS316 | SS316 | HT6806-04-04-NWO-SS |
| Stainless Steel-SS304 | SS304 | HT6806-04-04-NWO-S |
