| Tube O.D. | A THREAD |
B THREAD |
Y Hex |
B Hex |
M | M7 | I | J4 | D DRILL |
D1 DRILL |
Part Number | Working pressure in Bar |
| 1/4" | 7/16"-20UNF-2A | 9/16"-18UNF-2A | 14.30 | 17.46 | 26.80 | 31.80 | 14.00 | 19.10 | 4.40 | 7.50 | HT6801-04-06-NWO | 345.0 |
| 1/4" | 7/16"-20UNF-2A | 7/16"-20UNF-2A | 11.11 | 14.28 | 22.60 | 26.20 | 14.00 | 18.50 | 4.40 | 4.40 | HT6801-04-04-NWO | 345.0 |
| 5/16" | 1/2"-20UNF-2A | 9/16"-18UNF-2A | 14.30 | 17.46 | 26.60 | 31.80 | 14.00 | 19.10 | 6.00 | 7.50 | HT6801-05-04-NWO | 345.0 |
| 3/8" | 9/16"-18UNF-2A | 7/16"-20UNF-2A | 14.30 | 14.28 | 26.90 | 30.30 | 14.10 | 18.50 | 7.50 | 7.50 | HT6801-06-04-NWO | 345.0 |
| 3/8" | 9/16"-18UNF-2A | 1/2"-20UNF-2A | 14.30 | 15.87 | 26.90 | 30.30 | 14.10 | 18.50 | 7.50 | 6.00 | HT6801-06-05-NWO | 345.0 |
| 3/8" | 9/16"-18UNF-2A | 9/16"-18UNF-2A | 14.30 | 17.46 | 26.90 | 31.80 | 14.10 | 19.10 | 7.50 | 7.50 | HT6801-06-06-NWO | 345.0 |
| 3/8" | 9/16"-18UNF-2A | 3/4"-16UNF-2A | 19.00 | 22.22 | 29.00 | 36.90 | 14.10 | 25.25 | 7.50 | 9.90 | HT6801-06-08-NWO | 310.0 |
| 3/8" | 9/16"-18UNF-2A | 7/8"-14UNF-2A | 22.22 | 25.40 | 31.00 | 43.20 | 14.10 | 29.20 | 7.50 | 12.30 | HT6801-06-10-NWO | 240.0 |
| 1/2" | 3/4"-16UNF-2A | 9/16"-18UNF-2A | 19.00 | 17.46 | 31.80 | 33.35 | 16.70 | 19.00 | 9.90 | 7.50 | HT6801-08-06-NWO | 240.0 |
| 1/2" | 3/4"-16UNF-2A | 3/4"-16UNF-2A | 19.00 | 22.22 | 31.80 | 36.80 | 16.70 | 21.90 | 9.90 | 9.90 | HT6801-08-08-NWO | 310.0 |
| 1/2" | 3/4"-16UNF-2A | 7/8"-14UNF-2A | 22.22 | 25.40 | 33.80 | 43.20 | 16.70 | 25.40 | 9.90 | 12.30 | HT6801-08-10-NWO | 310.0 |
| 1/2" | 3/4"-16UNF-2A | 1-1/16"-12UN-2A | 27.00 | 31.75 | 36.07 | 49.30 | 16.70 | 29.00 | 9.90 | 15.50 | HT6801-08-12-NWO | 240.0 |
| 5/8" | 7/8"-14UNF-2A | 3/4"-16UNF-2A | 22.22 | 22.22 | 36.80 | 39.10 | 19.30 | 21.90 | 12.30 | 9.90 | HT6801-10-08-NWO | 240.0 |
| 5/8" | 7/8"-14UNF-2A | 7/8"-14UNF-2A | 22.22 | 25.40 | 36.80 | 43.20 | 19..3 | 25.40 | 12.30 | 12.30 | HT6801-10-10-NWO | 240.0 |
| 3/4" | 1-1/16"-12UN-2A | 7/8"-14UNF-2A | 27.00 | 25.40 | 42.20 | 45.20 | 21.90 | 25.40 | 15.50 | 12.30 | HT6801-12-10-NWO | 240.0 |
| 3/4" | 1-1/16"-12UN-2A | 1-1/16"-12UN-2A | 27.00 | 31.75 | 42.20 | 49.30 | 21.90 | 29.00 | 15.50 | 15.50 | HT6801-12-12-NWO | 240.0 |
| 1" | 1-5/16"-12UN-2A | 1-5/16"-12UN-2A | 33.30 | 38.10 | 46.00 | 52.10 | 23.10 | 29.00 | 21.40 | 21.40 | HT6801-16-16-NWO | 210.0 |
| 1-1/4" | 1-5/8"-12UN-2A | 1-5/8"-12UN-2A | 41.30 | 47.60 | 52.30 | 57.20 | 24.30 | 29.00 | 27.40 | 27.40 | HT6801-20-20-NWO | 170.0 |
Product
Assembly

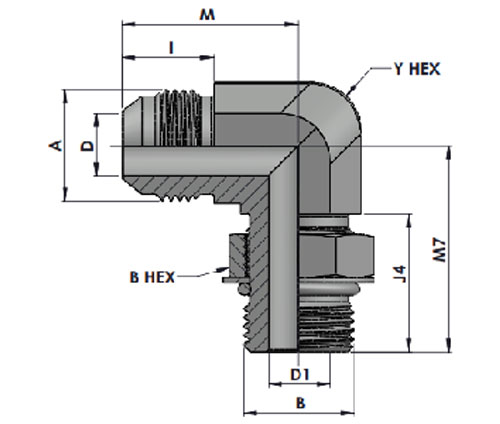

HT6801 MJ-MAORB 90°
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT6801-04-06-NWO | |
| Steel ,Zinc nickel plated | ZiNi | HT6801-04-06-NWO-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT6801-04-06-NWO-SST |
| Stainless Steel-SS316 | SS316 | HT6801-04-06-NWO-SS |
| Stainless Steel-SS304 | SS304 | HT6801-04-06-NWO-S |
