| Tube O.D. | A THREAD |
B THREAD |
Y Hex | C2 Hex |
M | M2 | I | J4 | D DRILL |
D1 DRILL |
Part Number | Torque N-m | Working pressure in Bar |
| 1/8" | 5/16"-24UNF-2A | 5/16"-24UNF-2A | 11.10 | 11.11 | 19.60 | 37.34 | 11.40 | 15.00 | 1.60 | 1.60 | HT6801-L-02-02-NWO | 8-9 | 345 |
| 3/16" | 3/8"-24UNF-2A | 3/8"-24UNF-2A | 11.10 | 12.70 | 21.10 | 38.86 | 12.20 | 15.00 | 3.20 | 3.20 | HT6801-L-03-03-NWO | 11-12 | 345 |
| 1/4" | 7/16"-20UNF-2A | 7/16"-20UNF-2A | 11.10 | 14.28 | 22.60 | 43.94 | 14.00 | 18.50 | 4.40 | 4.40 | HT6801-L-04-04-NWO | 15-16 | 345 |
| 5/16" | 1/2"-20UNF-2A | 1/2"-20UNF-2A | 14.30 | 15.87 | 24.10 | 47.24 | 14.00 | 18.50 | 6.00 | 6.00 | HT6801-L-05-05-NWO | 19-21 | 345 |
| 3/8" | 9/16"-18UNF-2A | 9/16"-18UNF-2A | 14.30 | 17.46 | 26.90 | 52.83 | 14.10 | 19.10 | 7.50 | 7.50 | HT6801-L-06-06-NWO | 24-28 | 345 |
| 1/2" | 3/4"-16UNF-2A | 3/4"-16UNF-2A | 19.00 | 22.22 | 31.80 | 62.99 | 16.70 | 21.90 | 9.90 | 9.90 | HT6801-L-08-08-NWO | 49-53 | 310 |
| 5/8" | 7/8"-14UNF-2A | 7/8"-14UNF-2A | 22.20 | 25.40 | 36.80 | 73.41 | 19.30 | 25.40 | 12.30 | 12.30 | HT6801-L-10-10-NWO | 77-85 | 240 |
| 3/4" | 1-1/16"-12UN-2A | 1-1/16"-12UN-2A | 27.00 | 31.75 | 42.20 | 84.84 | 21.90 | 29.00 | 15.50 | 15.50 | HT6801-L-12-12-NWO | 107-119 | 240 |
| 7/8" | 1-3/16"-12UN-2A | 1-3/16"-12UN-2A | 33.30 | 34.90 | 45.70 | 90.42 | 22.60 | 29.00 | 18.30 | 18.30 | HT6801-L-14-14-NWO | 127-140 | 210 |
| 1" | 1-5/16"-12UN-2A | 1-5/16"-12UN-2A | 33.30 | 38.10 | 46.00 | 94.49 | 23.10 | 29.00 | 21.40 | 21.40 | HT6801-L-16-16-NWO | 147-154 | 210 |
| 1-1/4" | 1-5/8"-12UN-2A | 1-5/8"-12UN-2A | 41.30 | 47.60 | 52.30 | 112.01 | 24.30 | 29.00 | 27.40 | 27.40 | HT6801-L-20-20-NWO | 172-181 | 170 |
| 1-1/2" | 1-7/8"-12UN-2A | 1-7/8"-12UN-2A | 47.60 | 53.98 | 59.20 | 122.17 | 27.50 | 29.00 | 33.30 | 33.30 | HT6801-L-24-24-NWO | 215-226 | 140 |
| 2" | 2-1/2"-12UN-2A | 2-1/2"-12UN-2A | 63.50 | 69.85 | 77.70 | 151.89 | 33.90 | 29.00 | 45.20 | 45.20 | HT6801-L-32-32-NWO | 332-350 | 105 |
Product
Assembly

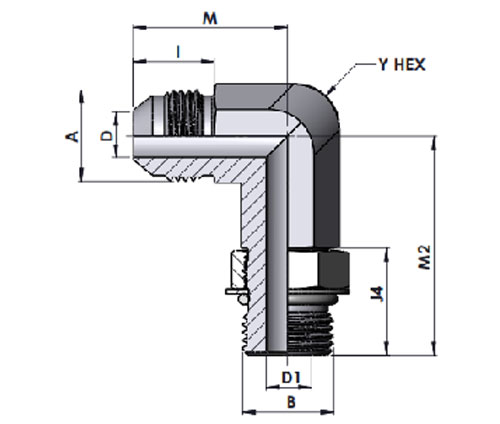

HT6801-L MJ-MAORB 90° LONG
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT6801-L-02-02-NWO | |
| Steel ,Zinc nickel plated | ZiNi | HT6801-L-02-02-NWO-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT6801-L-02-02-NWO-SST |
| Stainless Steel-SS316 | SS316 | HT6801-L-02-02-NWO-SS |
| Stainless Steel-SS304 | SS304 | HT6801-L-02-02-NWO-S |
