| Tube O.D. | A THREAD |
B THREAD |
C THREAD |
Y Hex | C3 Hex | M | M1 | M2 | N | N1 | N2 | D DRILL |
D1 DRILL |
D2 DRILL |
Part Number | Torque N-m | Working pressure in Bar |
| 1/4" | 7/16"-20UNF-2B | 7/16"-20UNF-2B | 7/16"-20UNF-2B | 11.10 | 14.28 | 22.60 | 22.60 | 22.60 | 16.70 | 16.70 | 16.70 | 4.40 | 4.40 | 4.40 | HT6606-04-04-04 | 18-20 | 345 |
| 3/8" | 9/16"-18UNF-2B | 9/16"-18UNF-2B | 9/16"-18UNF-2B | 14.30 | 17.46 | 26.90 | 26.90 | 26.90 | 22.30 | 22.30 | 22.30 | 7.50 | 7.50 | 7.50 | HT6606-06-06-06 | 29-33 | 275 |
| 1/2" | 3/4"-16UNF-2B | 3/4"-16UNF-2B | 3/4"-16UNF-2B | 19.00 | 22.22 | 31.80 | 31.80 | 31.80 | 24.40 | 24.40 | 24.40 | 9.90 | 9.90 | 9.90 | HT6606-08-08-08 | 49-53 | 210 |
| 5/8" | 7/8"-14UNF-2B | 7/8"-14UNF-2B | 7/8"-14UNF-2B | 22.20 | 25.40 | 36.80 | 36.80 | 36.80 | 28.40 | 28.40 | 28.40 | 12.30 | 12.30 | 12.30 | HT6606-10-10-10 | 59-64 | 210 |
| 3/4" | 1-1/16"-12UN-2B | 1-1/16"-12UN-2B | 1-1/16"-12UN-2B | 27.00 | 31.75 | 42.20 | 42.20 | 42.20 | 30.10 | 30.10 | 30.10 | 15.50 | 15.50 | 15.50 | HT6606-12-12-12 | 93-102 | 170 |
| 1" | 1-5/16"-12UN-2B | 1-5/16"-12UN-2B | 1-5/16"-12UN-2B | 33.30 | 41.28 | 46.00 | 46.00 | 46.00 | 37.50 | 37.50 | 37.50 | 21.40 | 21.40 | 21.40 | HT6606-16-16-16 | 151-166 | 140 |
Product
Assembly

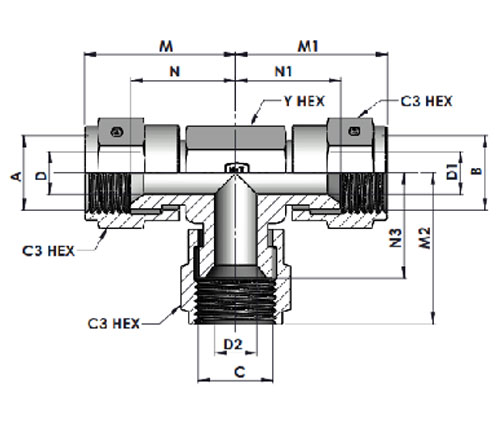

HT6606 FJS-FJS-FJS TEE
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT6606-04-04-04 | |
| Steel ,Zinc nickel plated | ZiNi | HT6606-04-04-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT6606-04-04-04-SST |
| Stainless Steel-SS316 | SS316 | HT6606-04-04-04-SS |
| Stainless Steel-SS304 | SS304 | HT6606-04-04-04-S |
