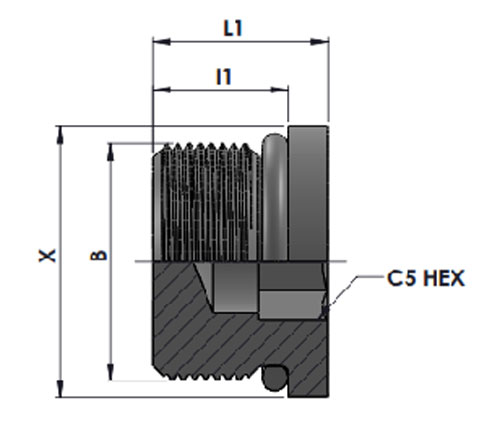

| Tube O.D. | B THREAD |
C5 Hex |
X RD |
L1 Length |
I1 | Part Number |
Torque N-m | Working pressure in Bar |
| 1/8" | 5/16"-24UNF-2A | 3.18 | 11.13 | 10.20 | 7.54 | HT6408-H02-O | 8-9 | 345 |
| 3/16" | 3/8"-24UNF-2A | 3.18 | 12.70 | 10.20 | 7.54 | HT6408-H03-O | 11-12 | 345 |
| 1/4" | 7/16"-20UNF-2A | 4.78 | 14.30 | 11.90 | 9.14 | HT6408-H04-O | 18-20 | 345 |
| 5/16" | 1/2"-20UNF-2A | 4.78 | 15.88 | 11.90 | 9.14 | HT6408-H05-O | 23-26 | 345 |
| 3/8" | 9/16"-18UNF-2A | 6.35 | 17.48 | 12.70 | 9.93 | HT6408-H06-O | 29-33 | 275 |
| 1/2" | 3/4"-16UNF-2A | 7.95 | 22.23 | 14.70 | 11.13 | HT6408-H08-O | 49-53 | 210 |
| 5/8" | 7/8"-14UNF-2A | 9.52 | 25.40 | 16.50 | 12.70 | HT6408-H10-O | 59-64 | 210 |
| 3/4" | 1-1/16"-12UN-2A | 14.30 | 31.75 | 19.50 | 15.09 | HT6408-H12-O | 93-102 | 170 |
| 7/8" | 1-3/16"-12UN-2A | 14.30 | 34.93 | 19.50 | 15.09 | HT6408-H14-O | 122-134 | 170 |
| 1" | 1-5/16"-12UN-2A | 15.88 | 38.10 | 19.50 | 15.09 | HT6408-H16-O | 151-166 | 140 |
| 1-1/4" | 1-5/8"-12UN-2A | 19.05 | 47.63 | 19.50 | 15.09 | HT6408-H20-O | 198-218 | 80 |
| 1-1/2" | 1-7/8"-12UN-2A | 19.05 | 53.98 | 19.50 | 15.09 | HT6408-H24-O | 209-231 | 70 |
| 2" | 2-1/2"-12UN-2A | 19.05 | 69.85 | 19.50 | 15.09 | HT6408-H32-O | 296-325 | 70 |
Product
Assembly
HT6408-H-O MORB HOLLOW HEX PLUG
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT6408-H02-O | |
| Steel ,Zinc nickel plated | ZiNi | HT6408-H02-O-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT6408-H02-O-SST |
| Stainless Steel-SS316 | SS316 | HT6408-H02-O-SS |
| Stainless Steel-SS304 | SS304 | HT6408-H02-O-S |
