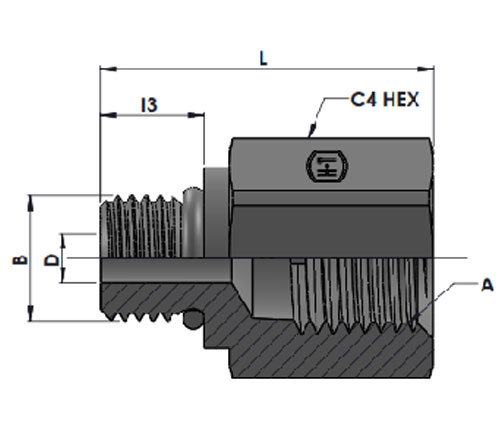

| Tube O.D | A THREAD |
B THREAD |
C4 Hex |
L Length |
I3 | D DRILL | Part Number | Working pressure in Bar |
| 1/4" | 7/16"-20UNF-2A | 1/8"-27NPTF-2 | 14.28 | 25.20 | 9.14 | 4.40 | HT6405-04-02-O | 345 |
| 1/4" | 7/16"-20UNF-2A | 1/4"-18NPTF-2 | 19.05 | 29.50 | 9.14 | 4.40 | HT6405-04-04-O | 275 |
| 3/8" | 9/16"-18UNF-2A | 1/4"-18NPTF-2 | 19.05 | 31.30 | 9.93 | 7.50 | HT6405-06-04-O | 275 |
| 1/2" | 3/4"-16UNF-2A | 3/8"-18NPTF-2 | 22.23 | 33.80 | 11.13 | 9.90 | HT6405-08-06-O | 210 |
| 1/2" | 3/4"-16UNF-2A | 1/2"-14NPTF-2 | 28.58 | 43.50 | 11.13 | 9.90 | HT6405-08-08-O | 210 |
| 5/8" | 7/8"-14UNF-2A | 1/2"-14NPTF-2 | 28.58 | 41.40 | 12.70 | 12.30 | HT6405-10-08-O | 210 |
| 3/4" | 1-1/16"-12UN-2A | 1/2"-14NPTF-2 | 31.75 | 43.70 | 15.09 | 15.50 | HT6405-12-08-O | 210 |
| 1-1/4" | 1-5/8"-12UN-2A | 1-1/4"-11-1/2NPTF-2 | 50.80 | 58.40 | 15.09 | 27.40 | HT6405-20-20-O | 80 |
| 1-1/2" | 1-7/8"-12UN-2A | 1-1/2"-11-1/2NPTF-2 | 60.32 | 60.30 | 15.09 | 33.30 | HT6405-24-24-O | 70 |
| 2" | 2"-12UN-2A | 2"-11-1/2NPTF-2 | 73.02 | 73.00 | 15.09 | 42.20 | HT6405-32-32-O | 70 |
Product
Assembly
HT6405 FORB-FP STRAIGHT
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT6405-04-02-O | |
| Steel ,Zinc nickel plated | ZiNi | HT6405-04-02-O-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT6405-04-02-O-SST |
| Stainless Steel-SS316 | SS316 | HT6405-04-02-O-SS |
| Stainless Steel-SS304 | SS304 | HT6405-04-02-O-S |
