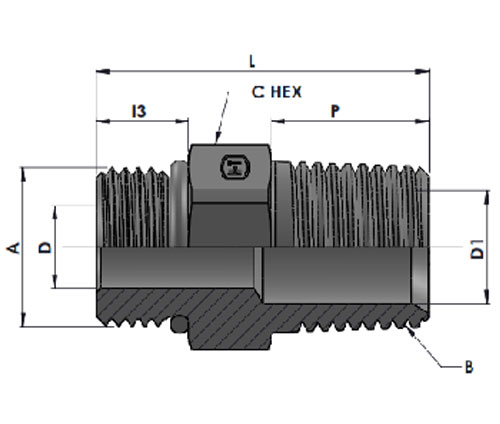

| Tube O.D | A THREAD |
B THREAD |
C Hex |
L Length |
I3 | P | D DRILL | D1 DRILL | Part Number | Working pressure in Bar |
| 1/4" | 7/16"-20UNF-2A | 1/4"-18NPTF-2 | 14.28 | 31.75 | 9.14 | 14.20 | 4.40 | 7.10 | HT6401-04-04-O | 275.0 |
| 3/8" | 9/16"-18UNF-2A | 3/8"-18NPTF-2 | 19.05 | 32.30 | 9.93 | 14.20 | 7.50 | 10.30 | HT6401-06-06-O | 210.0 |
| 3/8" | 9/16"-18UNF-2A | 1/4"-18NPTF-2 | 17.46 | 32.20 | 9.93 | 14.20 | 7.50 | 7.10 | HT6401-06-04-O | 275.0 |
| 3/8" | 9/16"-18UNF-2A | 1/2"-14NPTF-2 | 22.22 | 40.90 | 9.93 | 19.00 | 7.50 | 13.50 | HT6401-06-08-O | 210.0 |
| 1/2" | 3/4"-16UNF-2A | 3/8"-18NPTF-2 | 22.22 | 35.30 | 11.13 | 14.20 | 9.90 | 10.30 | HT6401-08-06-O | 210.0 |
| 1/2" | 3/4"-16UNF-2A | 1/2"-14NPTF-2 | 22.22 | 40.10 | 11.13 | 19.00 | 9.90 | 13.50 | HT6401-08-08-O | 210.0 |
| 3/4" | 1-1/16"-12UN-2A | 1/2"-14NPTF-2 | 31.75 | 46.75 | 15.09 | 19.00 | 15.50 | 13.50 | HT6401-12-08-O | 210.0 |
| 3/4" | 1-1/16"-12UN-2A | 3/4"-14NPTF-2 | 31.75 | 47.24 | 15.09 | 19.00 | 15.50 | 18.26 | HT6401-12-12-O | 170.0 |
| 1" | 1-5/16"-12UN-2A | 1"-11-1/2NPTF-2 | 38.10 | 52.83 | 15.09 | 23.90 | 21.40 | 23.80 | HT6401-16-16-O | 140.0 |
Product
Assembly
HT6401-O MORB-MP STRAIGHT
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT6401-04-04-O | |
| Steel ,Zinc nickel plated | ZiNi | HT6401-04-04-O-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT6401-04-04-O-SST |
| Stainless Steel-SS316 | SS316 | HT6401-04-04-O-SS |
| Stainless Steel-SS304 | SS304 | HT6401-04-04-O-S |
