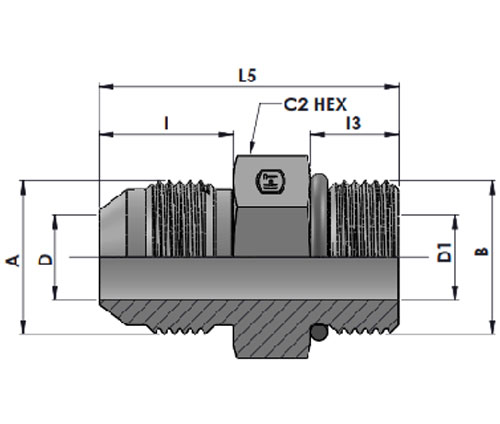

| Tube O.D | A THREAD |
B THREAD |
C4 Hex |
L5 Length |
I | I3 | D DRILL | D1 DRILL | Part Number | Working pressure in Bar |
| 1/4" | 7/16"-20UNF-2A | 1/2"-20UNF-2A | 15.88 | 31.20 | 14.00 | 9.14 | 4.40 | 6.00 | HT6400-04-05-O | 345 |
| 1/4" | 7/16"-20UNF-2A | 7/16"-20UNF-2A | 14.28 | 31.24 | 14.00 | 9.14 | 4.40 | 4.40 | HT6400-04-04-O | 345 |
| 1/4" | 7/16"-20UNF-2A | 9/16"-18UNF-2A | 17.46 | 32.70 | 14.00 | 9.93 | 4.40 | 7.50 | HT6400-04-06-O | 345 |
| 1/4" | 7/16"-20UNF-2A | 3/4"-16UNF-2A | 22.22 | 34.80 | 14.00 | 11.13 | 4.40 | 9.90 | HT6400-04-08-O | 310 |
| 3/8" | 9/16"-18UNF-2A | 7/16"-20UNF-2A | 15.88 | 32.30 | 14.10 | 9.14 | 7.50 | 4.40 | HT6400-06-04-O | 345 |
| 3/8" | 9/16"-18UNF-2A | 9/16"-18UNF-2A | 17.46 | 33.00 | 14.10 | 9.93 | 7.50 | 7.50 | HT6400-06-06-O | 345 |
| 3/8" | 9/16"-18UNF-2A | 3/4"-16UNF-2A | 22.22 | 35.00 | 14.10 | 11.13 | 7.50 | 9.90 | HT6400-06-08-O | 310 |
| 3/8" | 9/16"-18UNF-2A | 7/8"-14UNF-2A | 25.40 | 38.10 | 14.10 | 12.70 | 7.50 | 12.30 | HT6400-06-10-O | 240 |
| 3/8" | 9/16"-18UNF-2A | 1-1/16"-12UN-2A | 31.75 | 42.16 | 14.10 | 15.09 | 7.50 | 15.50 | HT6400-06-12-O | 310 |
| 1/2" | 3/4"-16UNF-2A | 9/16"-18UNF-2A | 20.63 | 36.58 | 16.70 | 9.93 | 9.90 | 7.50 | HT6400-08-06-O | 310 |
| 1/2" | 3/4"-16UNF-2A | 3/4"-16UNF-2A | 22.22 | 37.60 | 16.70 | 16.70 | 9.9 | 9.9 | HT6400-08-08-O | 310 |
| 1/2" | 3/4"-16UNF-2A | 7/8"-14UNF-2A | 25.40 | 40.64 | 16.70 | 12.70 | 9.90 | 12.30 | HT6400-08-10-O | 240 |
| 1/2" | 3/4"-16UNF-2A | 1-1/16"-12UN-2A | 31.75 | 44.70 | 16.70 | 18.09 | 9.90 | 15.50 | HT6400-08-12-O | 240 |
| 5/8" | 7/8"-14UNF-2A | 3/4"-16UNF-2A | 25.40 | 41.65 | 19.30 | 11.13 | 12.30 | 9.90 | HT6400-10-08-O | 240 |
| 5/8" | 7/8"-14UNF-2A | 7/8"-14UNF-2A | 25.40 | 43.20 | 19.30 | 12.70 | 12.30 | 12.30 | HT6400-10-10-O | 240 |
| 5/8" | 7/8"-14UNF-2A | 1-1/16"-12UN-2A | 31.75 | 47.20 | 19.30 | 15.09 | 12.30 | 15.50 | HT6400-10-12-O | 240 |
| 3/4" | 1-1/16"-12UN-2A | 3/4"-16UNF-2A | 28.58 | 49.28 | 21.90 | 11.13 | 15.50 | 9.90 | HT6400-12-08-O | 240 |
| 3/4" | 1-1/16"-12UN-2A | 7/8"-14UNF-2A | 28.58 | 47.75 | 21.90 | 12.70 | 15.50 | 12.30 | HT6400-12-10-O | 240 |
| 3/4" | 1-1/16"-12UN-2A | 1-1/16"-12UN-2A | 31.75 | 50.00 | 21.90 | 15.09 | 15.50 | 15.50 | HT6400-12-12-O | 240 |
| 3/4" | 1-1/16"-12UN-2A | 1-5/16"-12UN-2A | 38.10 | 50.50 | 21.90 | 15.09 | 15.50 | 21.40 | HT6400-12-16-O | 210 |
| 1" | 1-5/16"-12UN-2A | 1-5/16"-12UN-2A | 38.10 | 51.80 | 23.10 | 15.09 | 21.40 | 21.40 | HT6400-16-16-O | 210 |
| 1" | 1-5/16"-12UN-2A | 1-5/8"-12UN-2A | 47.62 | 52.90 | 23.10 | 15.09 | 23.10 | 15.09 | HT6400-16-20-O | 210 |
| 1-1/4" | 1-5/8"-12UN-2A | 1-5/8"-12UN-2A | 47.60 | 55.10 | 24.30 | 15.09 | 27.40 | 15.09 | HT6400-20-20-O | 140 |
| 1-1/4" | 1-5/8"-12UN-2A | 1-5/16"-12UN-2A | 42.86 | 59.20 | 24.30 | 15.09 | 27.50 | 21.50 | HT6400-20-16-O | 140 |
Product
Assembly
HT6400-O MJ-MORB STRAIGHT
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT6400-04-05-O | |
| Steel ,Zinc nickel plated | ZiNi | HT6400-04-05-O-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT6400-04-05-O-SST |
| Stainless Steel-SS316 | SS316 | HT6400-04-05-O-SS |
| Stainless Steel-SS304 | SS304 | HT6400-04-05-O-S |
