HT5605 FP-FP-FP TEE


  • Description
  • Additional Information

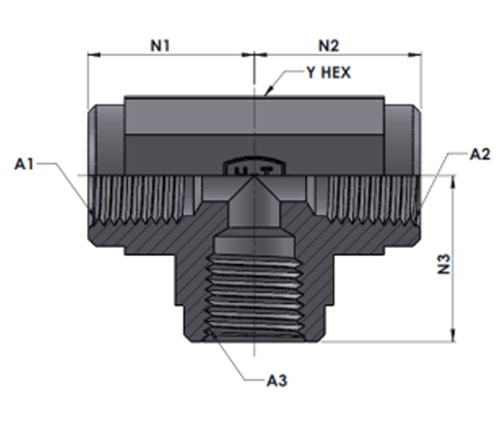

A1
THREAD		 A2
THREAD		 A3
THREAD		 Y
Hex 		 N1 N2 N3 Part Number Torque N-m Working pressure
in Bar
1/8"-27NPTF-2 1/8"-27NPTF-2 1/8"-27NPTF-2 14.27 16.70 16.70 16.70 HT5605-02-02-02 12-13 345
1/4"-18NPTF-2 1/4"-18NPTF-2 1/4"-18NPTF-2 19.05 22.40 22.40 22.40 HT5605-04-04-04 14-19 345
3/8"-18NPTF-2 3/8"-18NPTF-2 3/8"-18NPTF-2 22.22 25.90 25.90 25.90 HT5605-06-06-06 22-24 245
1/2"-14NPTF-2 1/2"-14NPTF-2 1/2"-14NPTF-2 27.00 31.20 31.20 31.20 HT5605-08-08-08 45-49 210
3/4"-14NPTF-2 3/4"-14NPTF-2 3/4"-14NPTF-2 33.33 34.50 34.50 34.50 HT5605-12-12-12 65-72 170
1"-11-1/2NPTF-2 1"-11-1/2NPTF-2 1"-11-1/2NPTF-2 41.28 41.10 41.10 41.10 HT5605-16-16-16 129-141 140
1-1/4"-11-1/2NPTF-2 1-1/4"-11-1/2NPTF-2 1-1/4"-11-1/2NPTF-2 41.27 43.10 43.10 43.10 HT5605-20-20-20 160-176 80
1-1/2"-11-1/2NPTF-2 1-1/2"-11-1/2NPTF-2 1-1/2"-11-1/2NPTF-2 47.62 52.80 52.80 52.80 HT5605-24-24-24 321-353 70
2"-11-1/2NPTF-2 2"-11-1/2NPTF-2 2"-11-1/2NPTF-2 65.07 60.70 60.70 60.70 HT5605-32-32-32 420-462 70
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT5605-02-02-02
Steel ,Zinc nickel plated  ZiNi HT5605-02-02-02-ZiNi
Stainless Steel-SS316 Ti SST HT5605-02-02-02-SST
Stainless Steel-SS316  SS316 HT5605-02-02-02-SS
Stainless Steel-SS304 SS304 HT5605-02-02-02-S
